U.s. Motors 3G-OTH-59981 — Spesifikasi Teknis

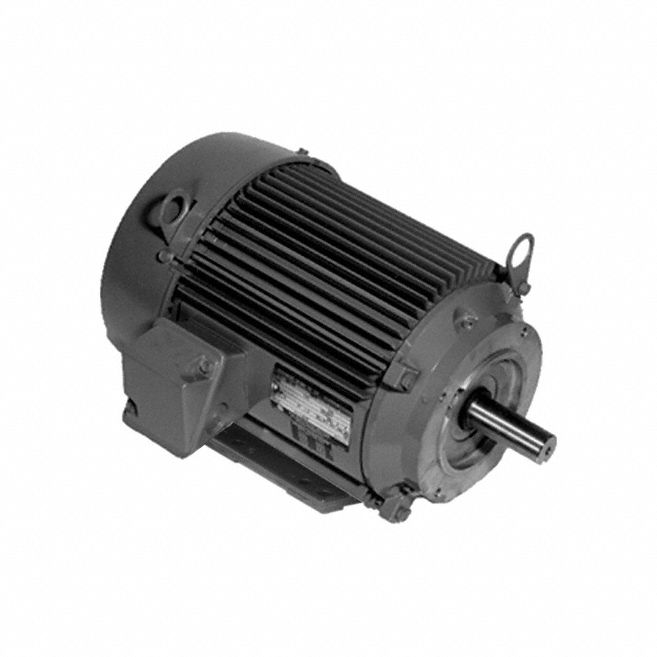

The U.S. MOTORS U7P2DCR is a C-Face 3-Phase General Purpose AC Motor with a TEFC enclosure. It delivers 7 1/2 hp at 1,765 RPM and operates on 208-230/460V AC with a full load current of 20.0-18.2/9.1 A. This motor is designed for flange-mount applications requiring a totally enclosed fan-cooled configuration.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | Totally Enclosed Fan Cooled, 7 1/2 hp, 1,765 RPM |
| Brand | U.S. MOTORS |
| Motor Enclosure | TEFC |
| Nameplate RPM @ 60 Hz | 1,765 RPM |
| Manufacturer Part Number | U7P2DCR |
| Full Load Current @ 60 Hz | 20.0-18.2/9.1 A |
| Nameplate Voltage @ 60 Hz | 208-230/460V AC |
| MOTORS General Purpose Motor | Flange Mount |
