U.s. Motors 3G-OTH-55123 — Spesifikasi Teknis

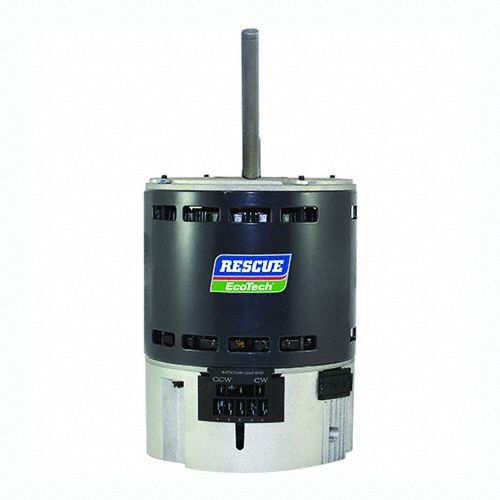

The U.S. MOTORS RESCUE® Series EC Motor (SKU 54ZX52, MPN 5522ET) is a constant RPM ECM blower motor in a 48Y frame size with an OAO enclosure. It is rated 1/3 hp (1/5 hp / 300 W), 1,075 RPM at 60 Hz, and 4.2/2.7 A full load amps at 115/208-230V AC. This motor features reversible rotation and dual voltage, includes a Y-Harness Adapter, and is designed as a replacement for PSC outdoor condenser fan motors.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | Belly Band, ECM, 4.2/2.7 A |
| Brand | U.S. MOTORS |
| Features | Reversible Rotation Dual voltage |
| Includes | Y-Harness Adapter |
| Frame Size | 48Y |
| ECM Motor Type | Constant RPM |
| Motor Enclosure | OAO |
| Rated Horsepower | 1/3 hp |
| Horsepower/Wattage | 1/5 hp300 W |
| For Motor Replacement | PSC Outdoor Condenser Fan Motor |
| Nameplate RPM @ 60 Hz | 1,075 RPM |
| Full Load Amps @ 60 Hz | 4.2/2.7 A |
| Includes User Interface | No |
| Manufacturer Part Number | 5522ET |
| Nameplate Voltage @ 60 Hz | 115/208-230V AC |
| External Controller Compatible | No |
| MOTORS Direct Drive Blower Motor | RESCUE® EcoTech™ |
| Compatible With External Controller | Not External Control Compatible |
