U.s. Motors 3G-OTH-55198 — Spesifikasi Teknis

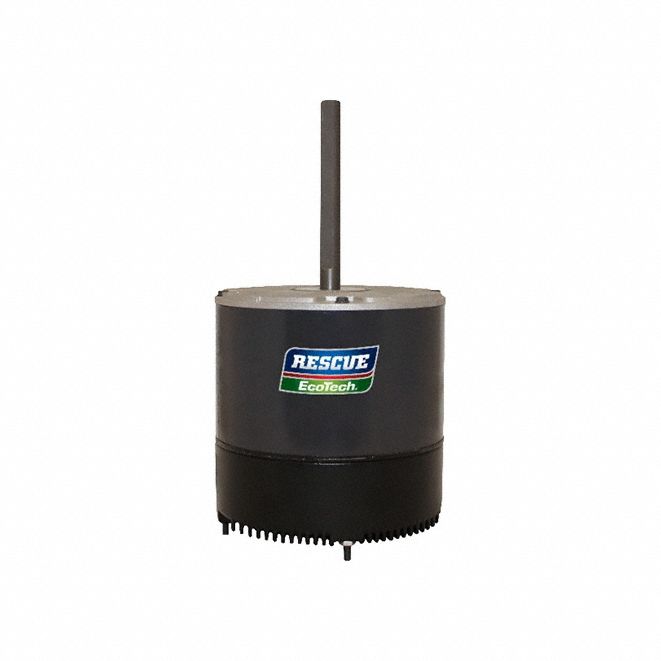

The U.S. MOTORS RESCUE® Series EC Motor (SKU 54ZX56, MPN 5561EO) is a 48Y frame, constant-torque ECM condenser fan motor rated at 1/3 hp (300 W) with a nameplate voltage of 208-230V AC at 60 Hz. It features a brushless permanent magnet design, a TEAO enclosure for outdoor use, and delivers nameplate RPM of 1,075/825 RPM with a full load amp rating of 2.5 A. This motor is not compatible with an external controller and does not include a user interface.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| AC | 208-230V |
| Type | Stud, ECM, 1/3 hp |
| Brand | U.S. MOTORS |
| Features | Outdoor Use |
| Includes | Brushless Permanent Magnet |
| Frame Size | 48Y |
| ECM Motor Type | Constant Torque |
| Motor Enclosure | TEAO |
| Rated Horsepower | 1/3 hp |
| Horsepower/Wattage | 1/3 hp300 W |
| Nameplate RPM @ 60 Hz | 1,075/825 RPM |
| Full Load Amps @ 60 Hz | 2.5 A |
| Includes User Interface | No |
| Manufacturer Part Number | 5561EO |
| Nameplate Voltage @ 60 Hz | 208-230V AC |
| MOTORS Condenser Fan Motor | RESCUE® EcoTech™ |
| External Controller Compatible | No |
| Compatible With External Controller | Not External Control Compatible |
