U.s. Motors 3G-OTH-55109 — Spesifikasi Teknis

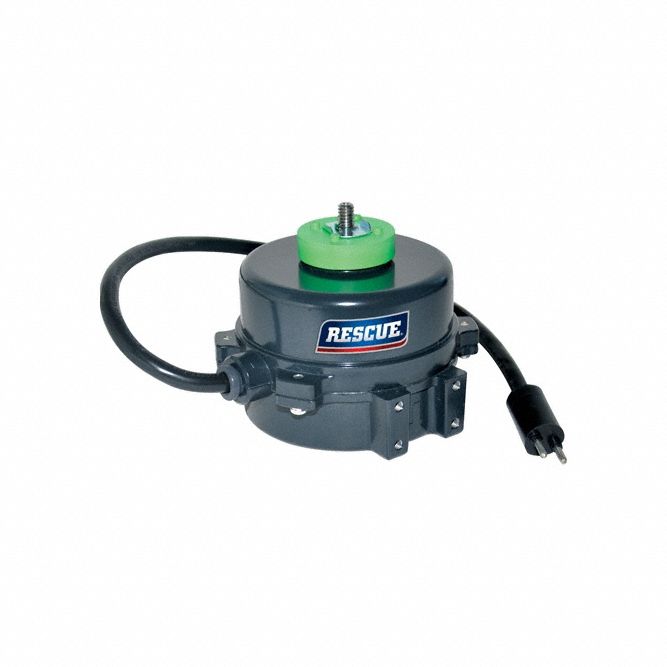

The U.S. MOTORS RESCUE® Series EC Motor (SKU 60XM88, MPN EC5411E) is a constant RPM ECM motor with a 33 frame size and TEAO enclosure. It features a stainless steel shaft, rated horsepower of 3/4 hp (1/30 hp to 25 W), nameplate RPM of 1,550-1,725 RPM at 60 Hz, full load amps of 0.22/0.75 A at 60 Hz, and nameplate voltage of 115/230V AC. This motor does not include a user interface and is not compatible with an external controller.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | Stud, ECM, 1/30 hp |
| Brand | U.S. MOTORS |
| Features | Stainless Steel Shaft |
| Frame Size | 33 |
| ECM Motor Type | Constant RPM |
| Motor Enclosure | TEAO |
| Rated Horsepower | 3/4 hp |
| Horsepower/Wattage | 1/30 hp4 to 25 W |
| Nameplate RPM @ 60 Hz | 1,550-1,725 RPM |
| Full Load Amps @ 60 Hz | 0.22/0.75 A |
| Includes User Interface | No |
| Manufacturer Part Number | EC5411E |
| Nameplate Voltage @ 60 Hz | 115/230V AC |
| MOTORS Refrigeration Motor | RESCUE® Refrigeration |
| External Controller Compatible | No |
| Compatible With External Controller | Not External Control Compatible |
