U.s. Motors 3G-OTH-55114 — Spesifikasi Teknis

Name: U.s. Motors 3G-OTH-55114 U.S. MOTORS Refrigeration Motor: RESCUE® Refrigeration, 33 Frame Size, Stud, ECM, 1/30 hp (MPN EC5414N). Key specifications — Brand: U.S. MOTORS; Manufacturer Part Number: EC5414N; ECM Motor Type: Constant RPM; Features: IP67 Rated; Frame Size: 33; Full Load Amps @ 60 Hz: 0.22/0.75 A; Includes User Interface: No; Nameplate RPM @ 60 Hz: 1,650/1,550 RPM.
Brand: U.s. Motors

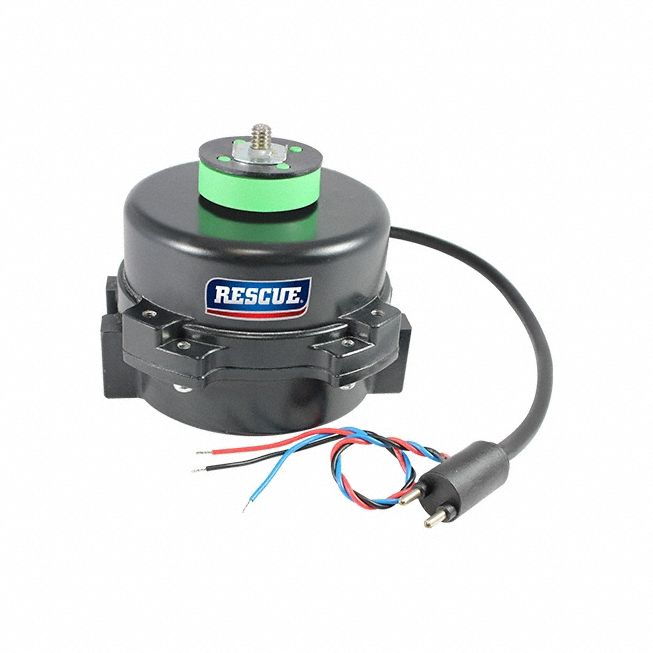

The U.S. MOTORS RESCUE® Series EC Motor (SKU 60XM90, MPN EC5414N) is a 33-frame, constant RPM ECM motor with a TEAO enclosure and IP67 rating. It delivers 1/30 hp (4 to 25 W) at 1,650/1,550 RPM, with full load amps of 0.22/0.75 A at 115/230V AC. This motor is not compatible with an external controller and does not include a user interface.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Stud, ECM, 1/30 hp
Brand	U.S. MOTORS
Features	IP67 Rated
Frame Size	33
ECM Motor Type	Constant RPM
Motor Enclosure	TEAO
Rated Horsepower	3/4 hp
Horsepower/Wattage	1/30 hp4 to 25 W
Nameplate RPM @ 60 Hz	1,650/1,550 RPM
Full Load Amps @ 60 Hz	0.22/0.75 A
Includes User Interface	No
Manufacturer Part Number	EC5414N
Nameplate Voltage @ 60 Hz	115/230V AC
MOTORS Refrigeration Motor	RESCUE® Refrigeration
External Controller Compatible	No
Compatible With External Controller	Not External Control Compatible
