Vne 3G-OTH-429416 — Spesifikasi Teknis

Name: Vne 3G-OTH-429416 VNE Ball Check Valve: Ball, Y-Style Valve Body, 2 in Pipe Size, 316L Stainless Steel, Clamp x Clamp (MPN EG45BY-62.0-V). Key specifications — Standards: FDA; Mounting Orientation: Horizontal; Brand: VNE; Connection Type - Side 2: Clamp; Valve Series: EG45BY-6; 3-A Compliance: Meets 3A Sanitary Standards; Connection Type - Side 1: Clamp; For Media: Fluids.
Brand: Vne

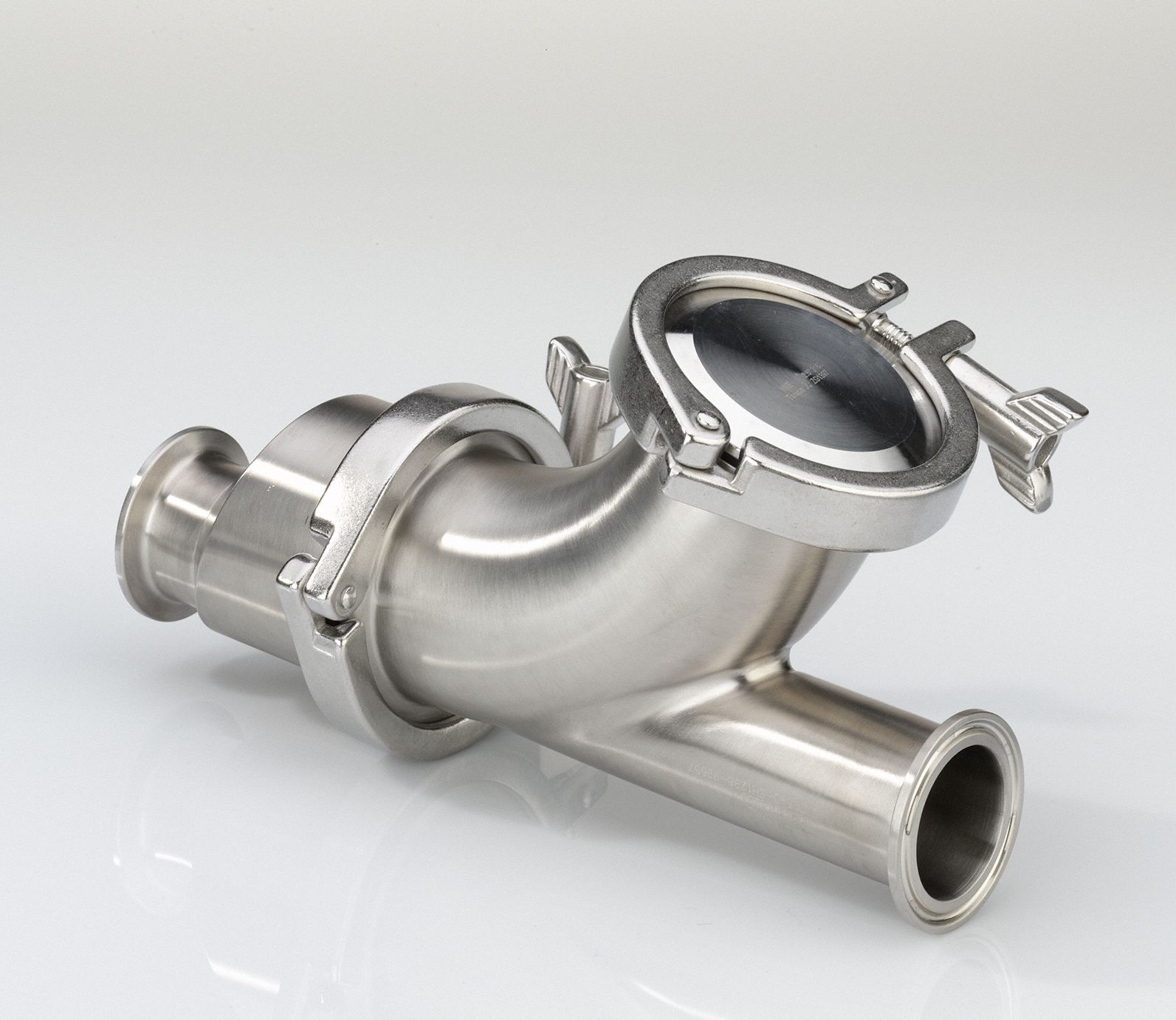

The VNE Ball Check Valve: Ball (SKU 803CV9) is a 3-A Certified stainless steel ball check valve from the EG45BY-6 series, featuring a Y-style valve body in 316L stainless steel with a 2-inch pipe size and Clamp x Clamp connections. It meets 3A Sanitary Standards and FDA standards, is designed for fluids, has a horizontal mounting orientation, and includes a standard silent check feature with an average surface roughness of 32 micron-in.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Y-Style Valve Body, Clamp x Clamp
Brand	VNE
For Media	Fluids
Pipe Size	2 in
Standards	FDA
Silent Check	Standard
Valve Series	EG45BY-6
3-A Compliance	Meets 3A Sanitary Standards
Connection Type	Clamp x Clamp
Stainless Steel	316L
Mounting Orientation	Horizontal
Includes Counterweight	No Counterweight
Connection Type - Side 1	Clamp
Connection Type - Side 2	Clamp
Manufacturer Part Number	EG45BY-62.0-V
Average Surface Roughness (Ra)	32 micron-in
