Warner Electric 3G-OTH-113040 — Spesifikasi Teknis

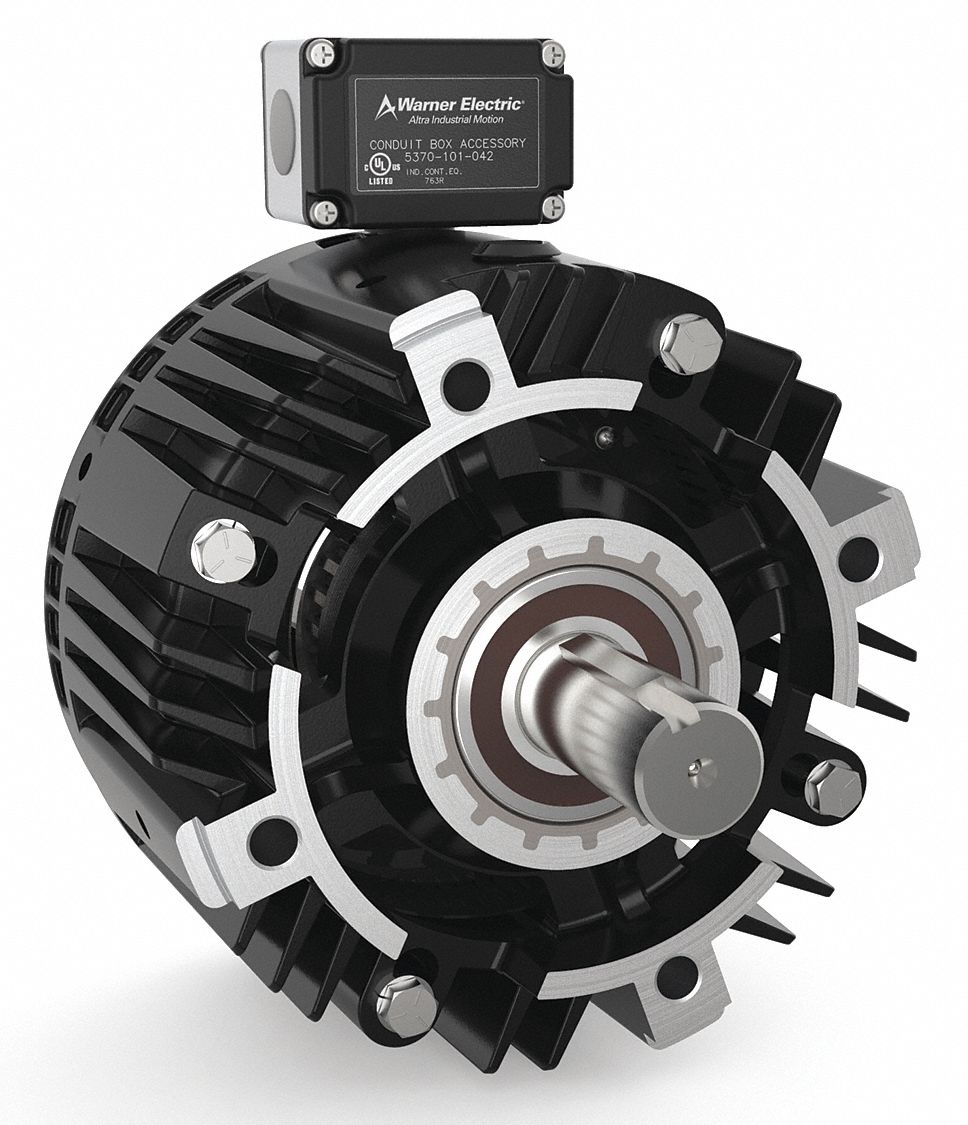

The WARNER ELECTRIC C-Face Clutch (MPN UM215-1040) is a motor-mounted clutch designed for use with NEMA C-Face motors or reducers. It features a vented enclosure, operates at 90V DC, and delivers 95 ft-lb of static torque. This C-Face clutch mounts directly to a NEMA 213TC motor frame or between the motor and reducer, and includes mounting hardware.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| DC | 90V |
| Type | Vented, 95 ft-lb Static Torque |
| Brand | WARNER ELECTRIC |
| Includes | Mounting Hardware |
| For Use With | NEMA C-Face Motor/Reducer |
| Enclosure Type | Vented |
| Clutch/Brake Type | C-Face |
| Mounting Location | NEMA C-Face Motor or Between Motor and Reducer |
| Motor Frame Designation | 213TC NEMA |
| Manufacturer Part Number | UM215-1040 |
