Weg 3G-OTH-56566 — Spesifikasi Teknis

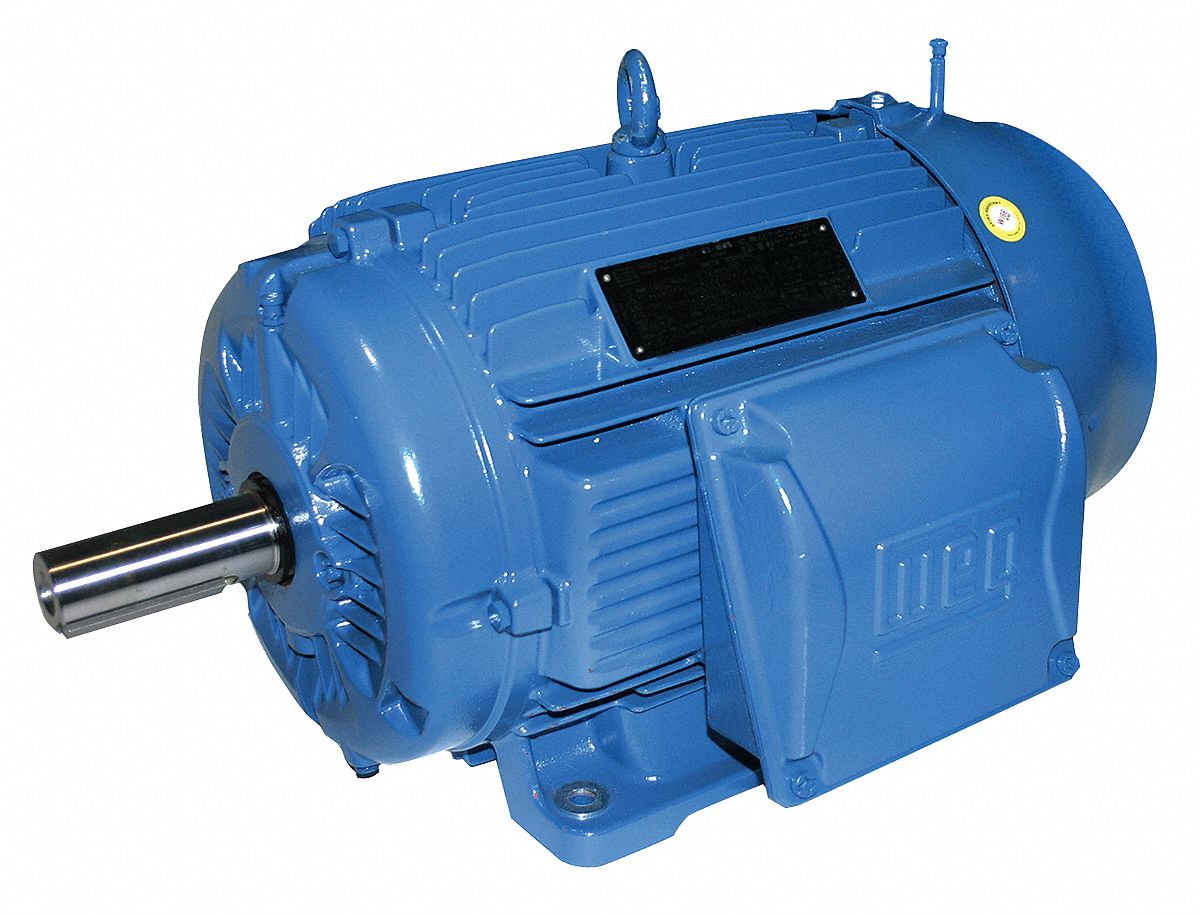

The WEG General Purpose Motor: 20 hp is a Rigid Base 3-Phase IEC Metric General Purpose AC Motor (MPN 01512ET3Y180L-W22). It features a TEFC enclosure, a nameplate voltage of 460V AC at 60 Hz, a full load amps rating of 24.7 A at 60 Hz, and a nameplate RPM of 1180 at 60 Hz.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | Rigid Base Mount, Totally Enclosed Fan Cooled |
| Brand | WEG |
| Frame Size | 180L |
| Motor Enclosure | TEFC |
| Nameplate RPM @ 60 Hz | 1180 RPM |
| Full Load Amps @ 60 Hz | 24.7 A |
| Manufacturer Part Number | 01512ET3Y180L-W22 |
| Nameplate Voltage @ 60 Hz | 460V AC |
