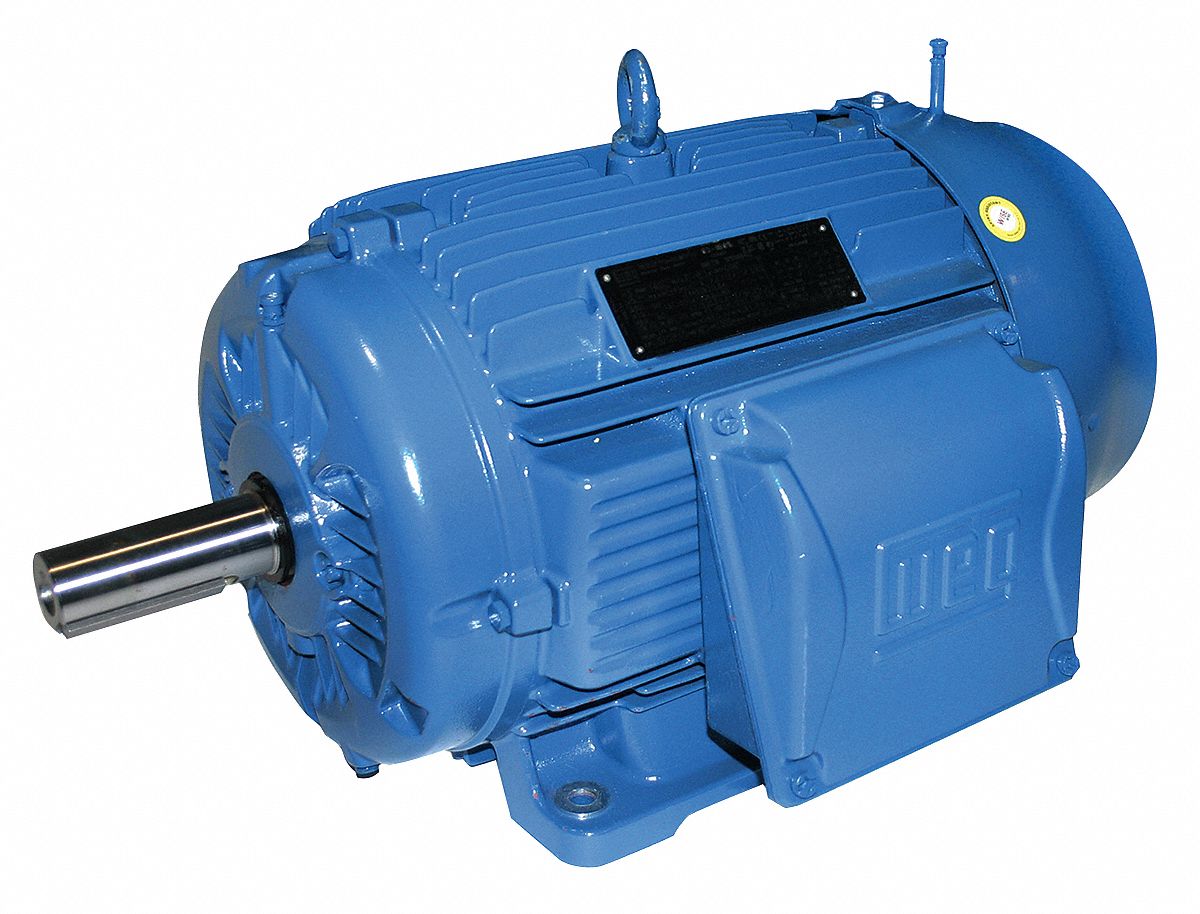

Weg 3G-OTH-57753 — Spesifikasi Teknis
The WEG General Purpose Motor is a 25 hp Rigid Base 3-Phase IEC Metric General Purpose AC Motor with a TEFC enclosure. It features a 160L frame size, a nameplate voltage of 460V AC at 60 Hz, a full load amps rating of 29.9 A at 60 Hz, and a nameplate RPM of 3,550 at 60 Hz.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | Rigid Base Mount, Totally Enclosed Fan Cooled |
| Brand | WEG |
| Frame Size | 160L |
| Motor Enclosure | TEFC |
| Nameplate RPM @ 60 Hz | 3,550 RPM |
| Full Load Amps @ 60 Hz | 29.9 A |
| Manufacturer Part Number | 01836ET3Y160L-W22 |
| Nameplate Voltage @ 60 Hz | 460V AC |
