Weg 3G-OTH-54669 — Spesifikasi Teknis

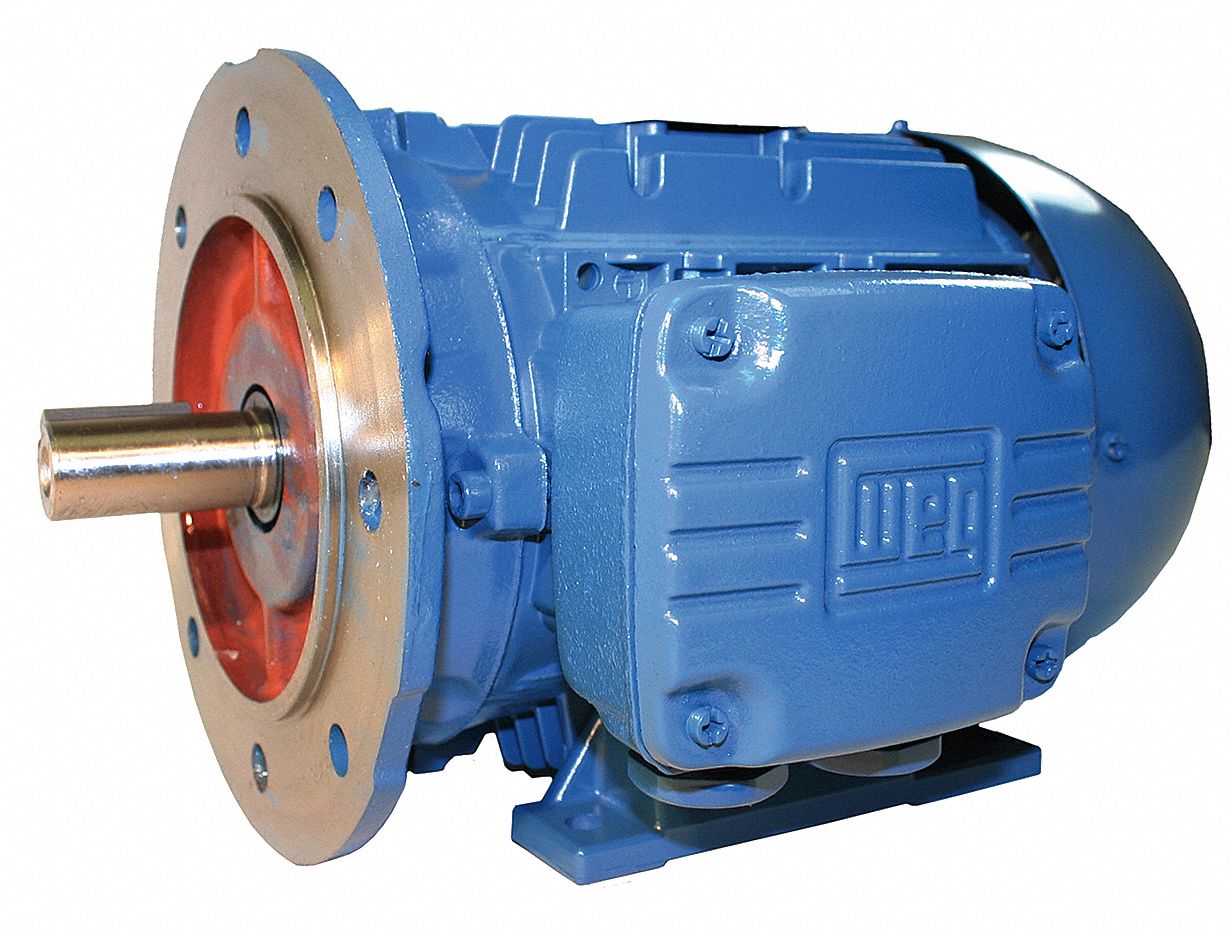

The WEG General Purpose Motor is a 25 hp C-Face with Rigid Base 3-Phase IEC Metric General Purpose AC Motor. It features a TEFC enclosure, a nameplate voltage of 460V AC, a nameplate RPM of 3550 RPM at 60 Hz, and a full load amps rating of 29.9 A at 60 Hz. This motor is identified by manufacturer part number 01836ET3Y160LFF-W22.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| AC | 460V |
| Type | C-Face/Rigid Base Mount, 3550 RPM |
| Brand | WEG |
| Frame Size | 160L |
| Motor Enclosure | TEFC |
| Nameplate RPM @ 60 Hz | 3550 RPM |
| Full Load Amps @ 60 Hz | 29.9 A |
| Manufacturer Part Number | 01836ET3Y160LFF-W22 |
| Nameplate Voltage @ 60 Hz | 460V AC |
