Weg 3G-OTH-56906 — Spesifikasi Teknis

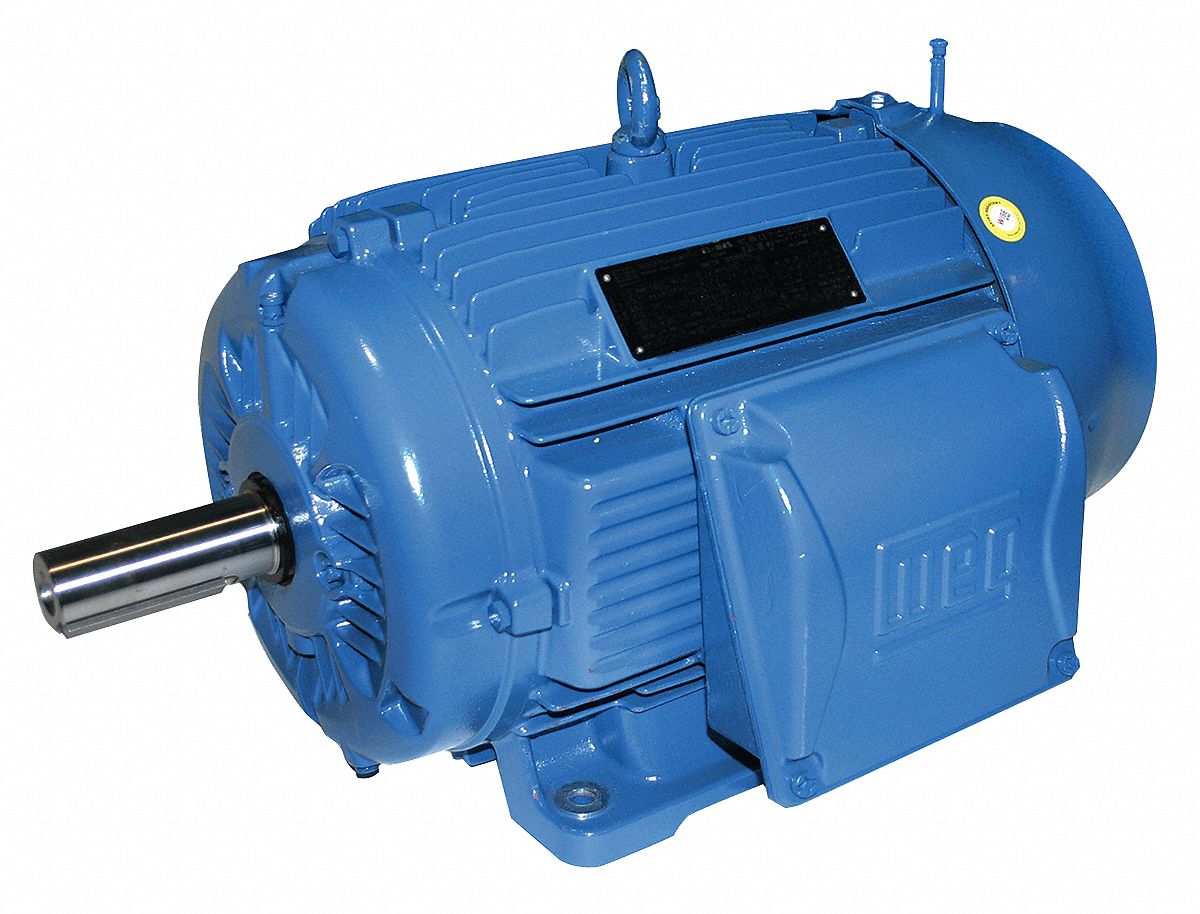

The WEG General Purpose Motor is a 60 hp Rigid Base 3-Phase IEC Metric General Purpose AC Motor with a TEFC enclosure. It operates at 1780 RPM and 460V AC at 60 Hz, drawing 69.9 A full load amps. This model (MPN 04518ET3Y225S/M-W22) features a 225S/M frame size.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | Rigid Base Mount, Totally Enclosed Fan Cooled |
| Brand | WEG |
| Frame Size | 225S/M |
| Motor Enclosure | TEFC |
| Nameplate RPM @ 60 Hz | 1780 RPM |
| Full Load Amps @ 60 Hz | 69.9 A |
| Manufacturer Part Number | 04518ET3Y225S/M-W22 |
| Nameplate Voltage @ 60 Hz | 460V AC |
