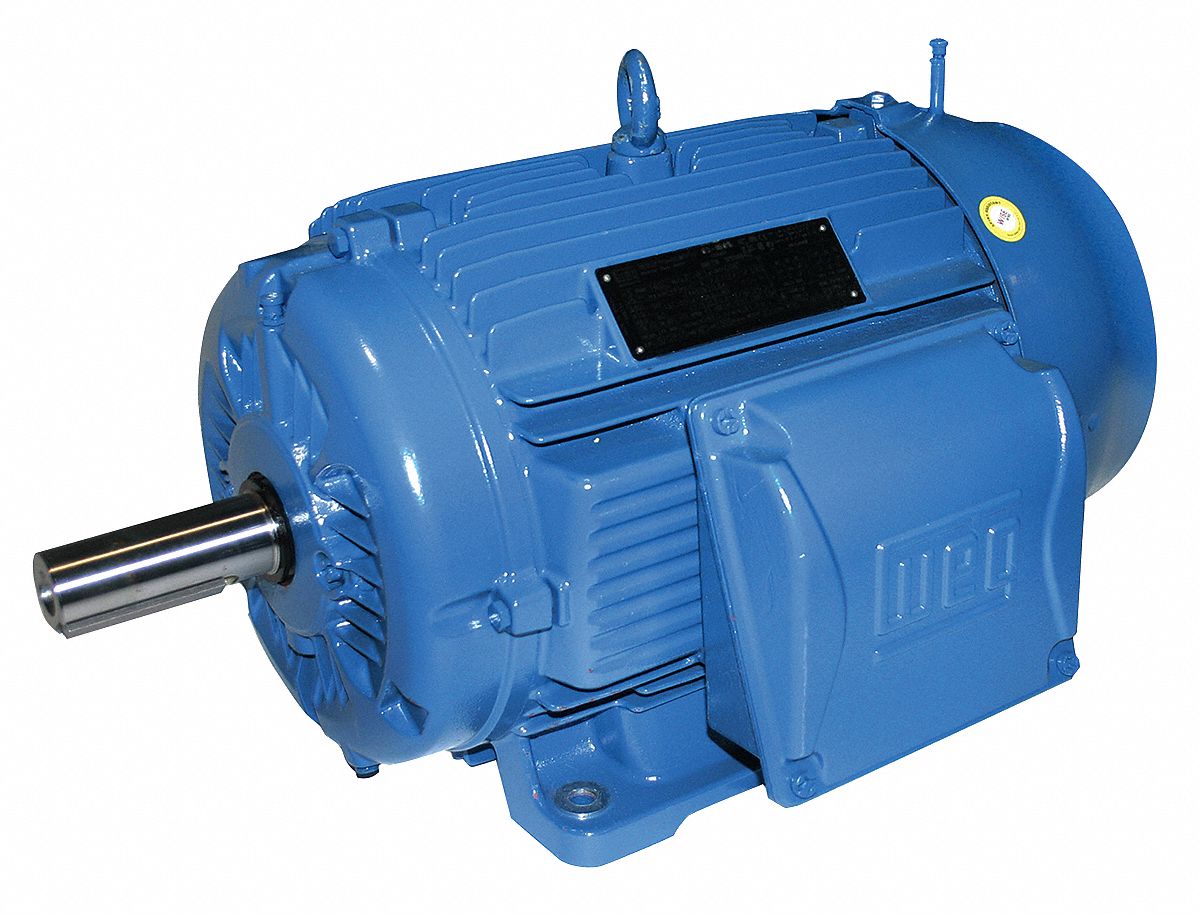

Weg 3G-OTH-57886 — Spesifikasi Teknis
The WEG General Purpose Motor (100 hp) is a Rigid Base 3-Phase IEC Metric General Purpose AC Motor with a 315S/M frame size. It features a Totally Enclosed Fan Cooled (TEFC) enclosure and operates at 460V AC, 122.0 A full load amps, and 1,190 RPM at 60 Hz.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | Rigid Base Mount, Totally Enclosed Fan Cooled |
| Brand | WEG |
| Frame Size | 315S/M |
| Motor Enclosure | TEFC |
| Nameplate RPM @ 60 Hz | 1,190 RPM |
| Full Load Amps @ 60 Hz | 122.0 A |
| Manufacturer Part Number | 07512ET3Y315S/M-W22 |
| Nameplate Voltage @ 60 Hz | 460V AC |
