Weg 3G-OTH-58153 — Spesifikasi Teknis

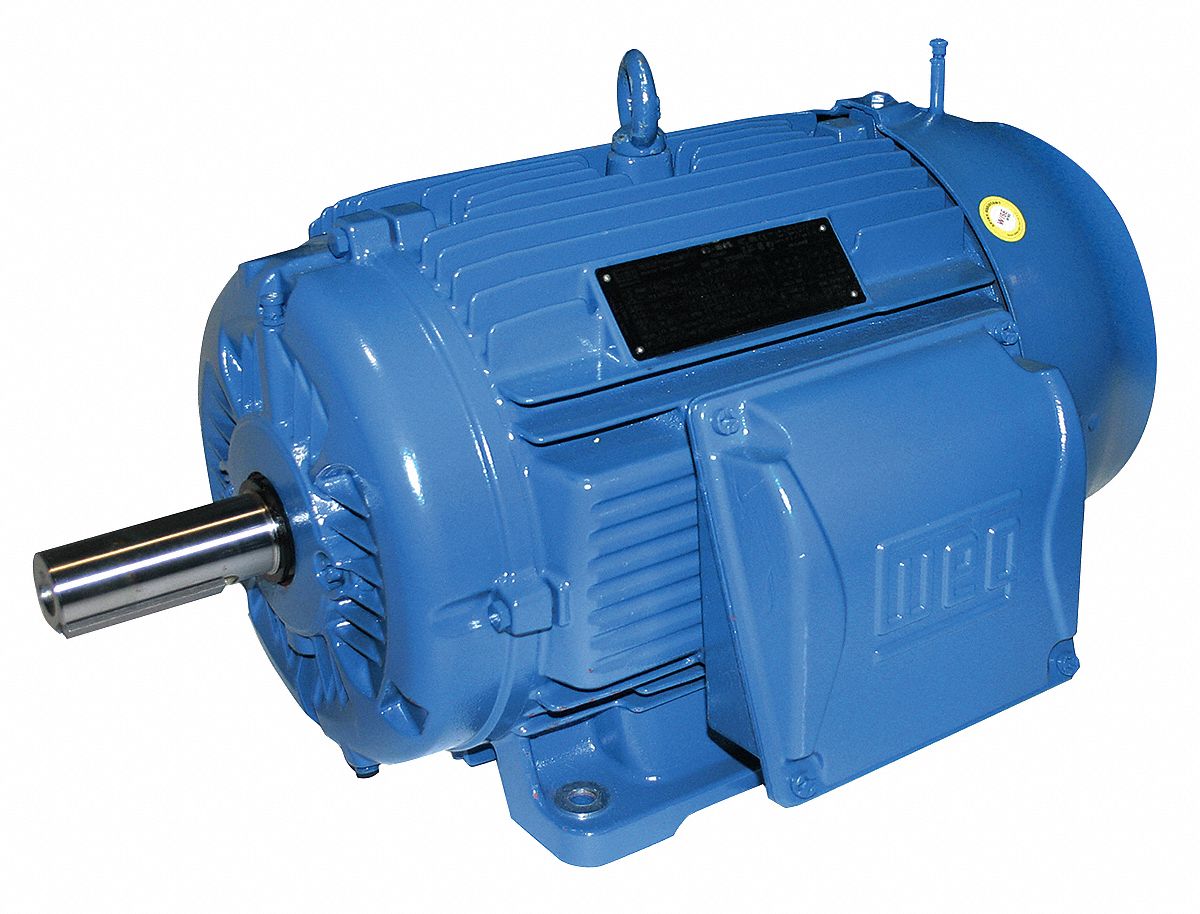

The WEG General Purpose Motor: 100 hp is a Rigid Base 3-Phase IEC Metric General Purpose AC Motor (MPN 07536ET3Y280S/M-W22) with a TEFC enclosure. It operates at 3,585 RPM and 460V AC at 60 Hz, drawing 111.0 A at full load. This motor features a 280S/M frame size.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | Rigid Base Mount, Totally Enclosed Fan Cooled |
| Brand | WEG |
| Frame Size | 280S/M |
| Motor Enclosure | TEFC |
| Nameplate RPM @ 60 Hz | 3,585 RPM |
| Full Load Amps @ 60 Hz | 111.0 A |
| Manufacturer Part Number | 07536ET3Y280S/M-W22 |
| Nameplate Voltage @ 60 Hz | 460V AC |
