Weg 3G-OTH-57117 — Spesifikasi Teknis

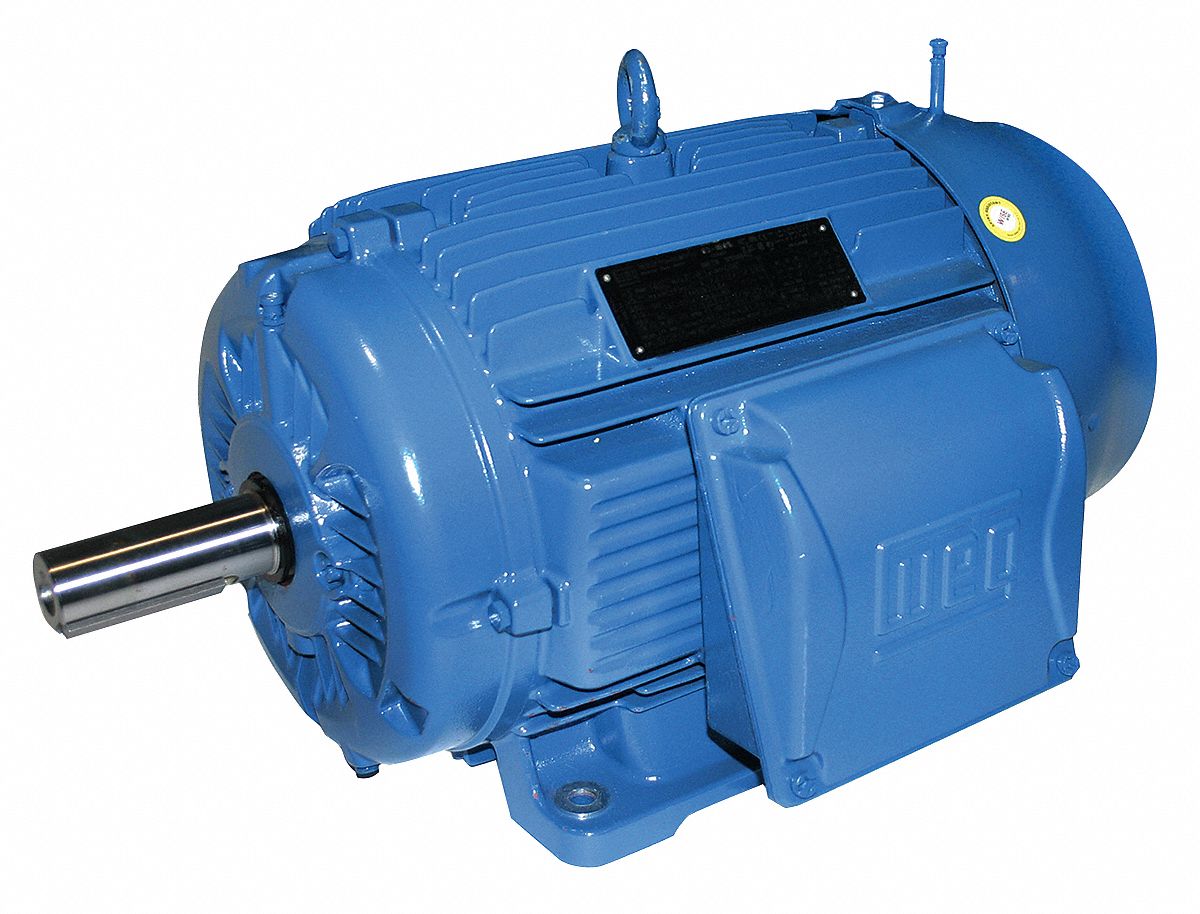

The WEG General Purpose Motor (125 hp) is a Rigid Base 3-Phase IEC Metric General Purpose AC Motor with a TEFC enclosure. It operates at 460V AC, 132.0 A full load amps, and 3580 RPM at 60 Hz, with a 280S/M frame size (MPN 09036ET3Y280S/M-W22).
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | Rigid Base Mount, Totally Enclosed Fan Cooled |
| Brand | WEG |
| Frame Size | 280S/M |
| Motor Enclosure | TEFC |
| Nameplate RPM @ 60 Hz | 3580 RPM |
| Full Load Amps @ 60 Hz | 132.0 A |
| Manufacturer Part Number | 09036ET3Y280S/M-W22 |
| Nameplate Voltage @ 60 Hz | 460V AC |
