Weg 3G-OTH-57724 — Spesifikasi Teknis

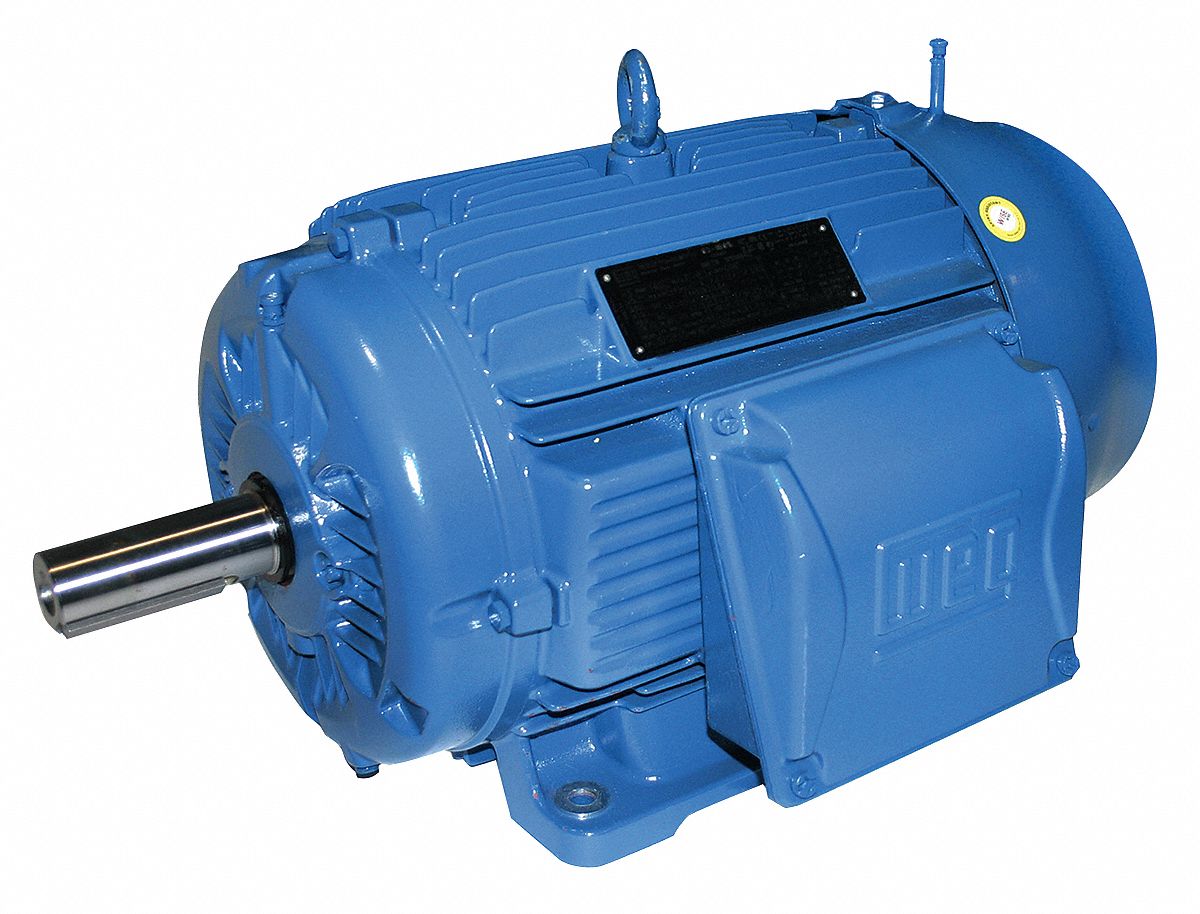

The WEG General Purpose Motor (150 hp) is a Rigid Base 3-Phase IEC Metric General Purpose AC Motor with a TEFC enclosure. It operates at 460V AC, 163.0 A full load amps, and 3585 RPM at 60 Hz. This model (MPN 11036ET3Y315S/M-W22) features a 315S/M frame size.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | Rigid Base Mount, Totally Enclosed Fan Cooled |
| Brand | WEG |
| Frame Size | 315S/M |
| Motor Enclosure | TEFC |
| Nameplate RPM @ 60 Hz | 3585 RPM |
| Full Load Amps @ 60 Hz | 163.0 A |
| Manufacturer Part Number | 11036ET3Y315S/M-W22 |
| Nameplate Voltage @ 60 Hz | 460V AC |
