Weg 3G-OTH-55513 — Spesifikasi Teknis

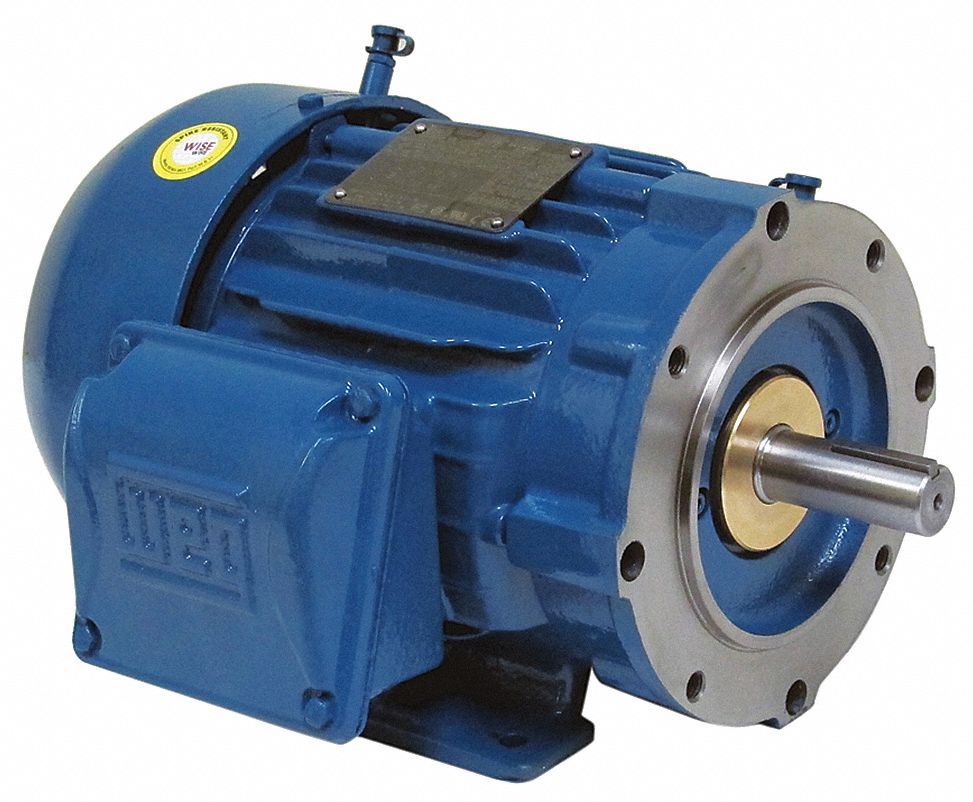

The WEG General Purpose Motor: C-Face/Rigid Base Mount (MPN 00718ET3H213TC-W22) is a 7 1/2 hp, TEFC, 3-phase AC motor with a C-Face and rigid base mount. It operates at 1,765 RPM and 575V AC with a full load current of 7.34 A at 60 Hz.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| AC | 575V |
| Type | Totally Enclosed Fan Cooled, 7 1/2 hp |
| Brand | WEG |
| Motor Enclosure | TEFC |
| Nameplate RPM @ 60 Hz | 1,765 RPM |
| Manufacturer Part Number | 00718ET3H213TC-W22 |
| Full Load Current @ 60 Hz | 7.34 A |
| Nameplate Voltage @ 60 Hz | 575V AC |
