Weg 3G-OTH-54745 — Spesifikasi Teknis

Name: Weg 3G-OTH-54745 WEG General Purpose Motor: C-Face/Rigid Base Mount, Totally Enclosed Fan Cooled, 30 hp, 575V AC (MPN 03036ET3H286TSC-W22). Key specifications — Brand: WEG; Nameplate Voltage @ 60 Hz: 575V AC; Full Load Current @ 60 Hz: 27.0 A; Nameplate RPM @ 60 Hz: 3,535 RPM; Motor Enclosure: TEFC.
Brand: Weg

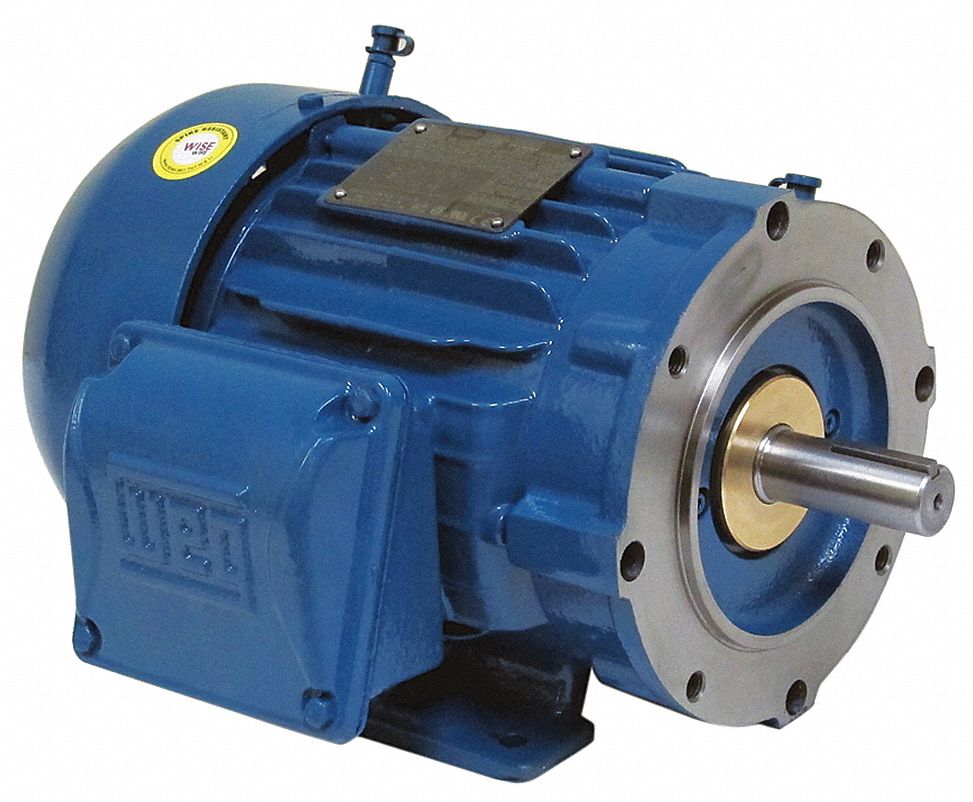

The WEG General Purpose Motor is a C-Face with Rigid Base 3-Phase AC motor, model 03036ET3H286TSC-W22. It features a TEFC enclosure, delivers 30 hp at 3,535 RPM (60 Hz), and operates on 575V AC with a full load current of 27.0 A.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
AC	575V
Type	Totally Enclosed Fan Cooled, 30 hp
Brand	WEG
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	3,535 RPM
Manufacturer Part Number	03036ET3H286TSC-W22
Full Load Current @ 60 Hz	27.0 A
Nameplate Voltage @ 60 Hz	575V AC
