Weg 3G-OTH-61078 — Spesifikasi Teknis

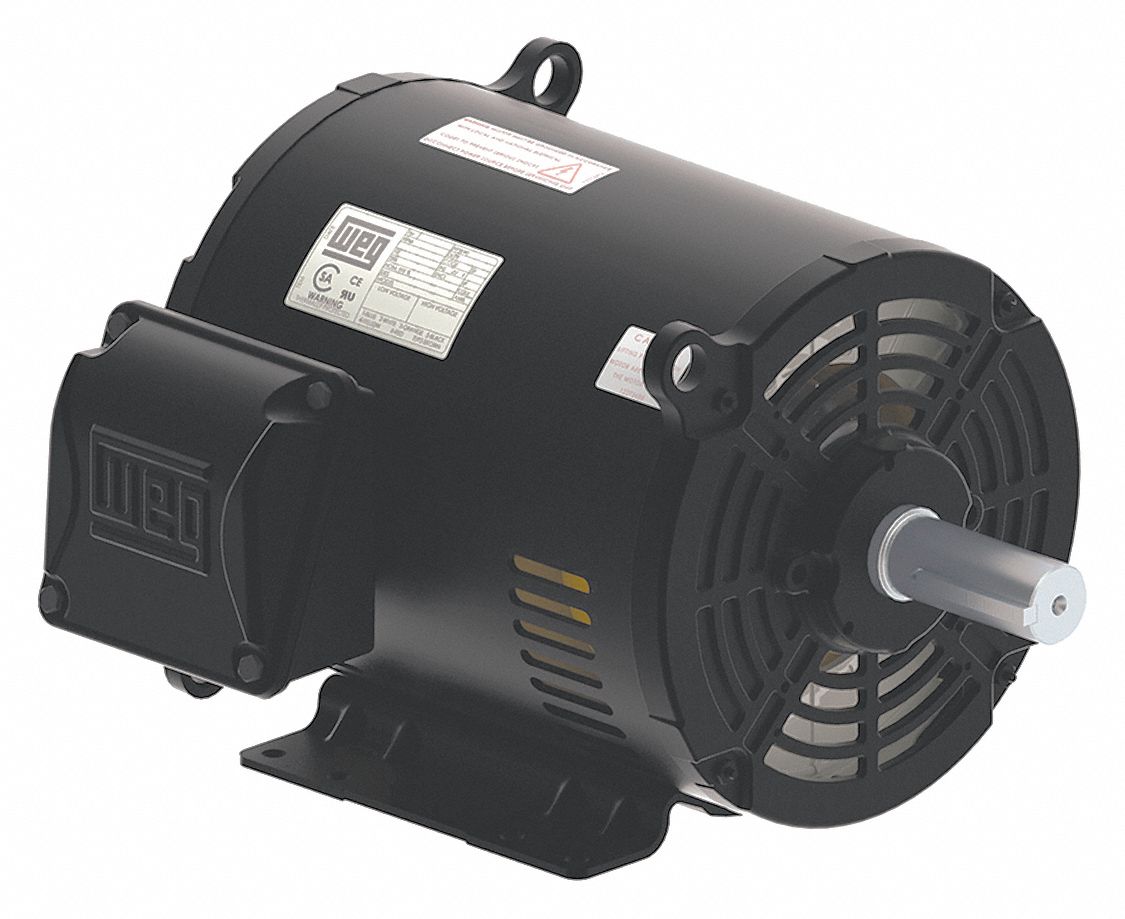

The WEG General Purpose Motor: Rigid Base Mount (SKU 33HN03) is a rigid base 3-phase general purpose AC motor with an Open Drip Proof (ODP) enclosure. It is rated at 25 hp, 575V AC, 1,800 RPM, and draws a full load current of 23.3 A at 60 Hz (MPN 02536OT3H256T-S).
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| AC | 575V |
| Type | Open Drip Proof, 25 hp, 1,800 RPM |
| Brand | WEG |
| Motor Enclosure | ODP |
| Nameplate RPM @ 60 Hz | 1,800 RPM |
| Manufacturer Part Number | 02536OT3H256T-S |
| Full Load Current @ 60 Hz | 23.3 A |
| Nameplate Voltage @ 60 Hz | 575V AC |
