Weg 3G-OTH-55243 — Spesifikasi Teknis

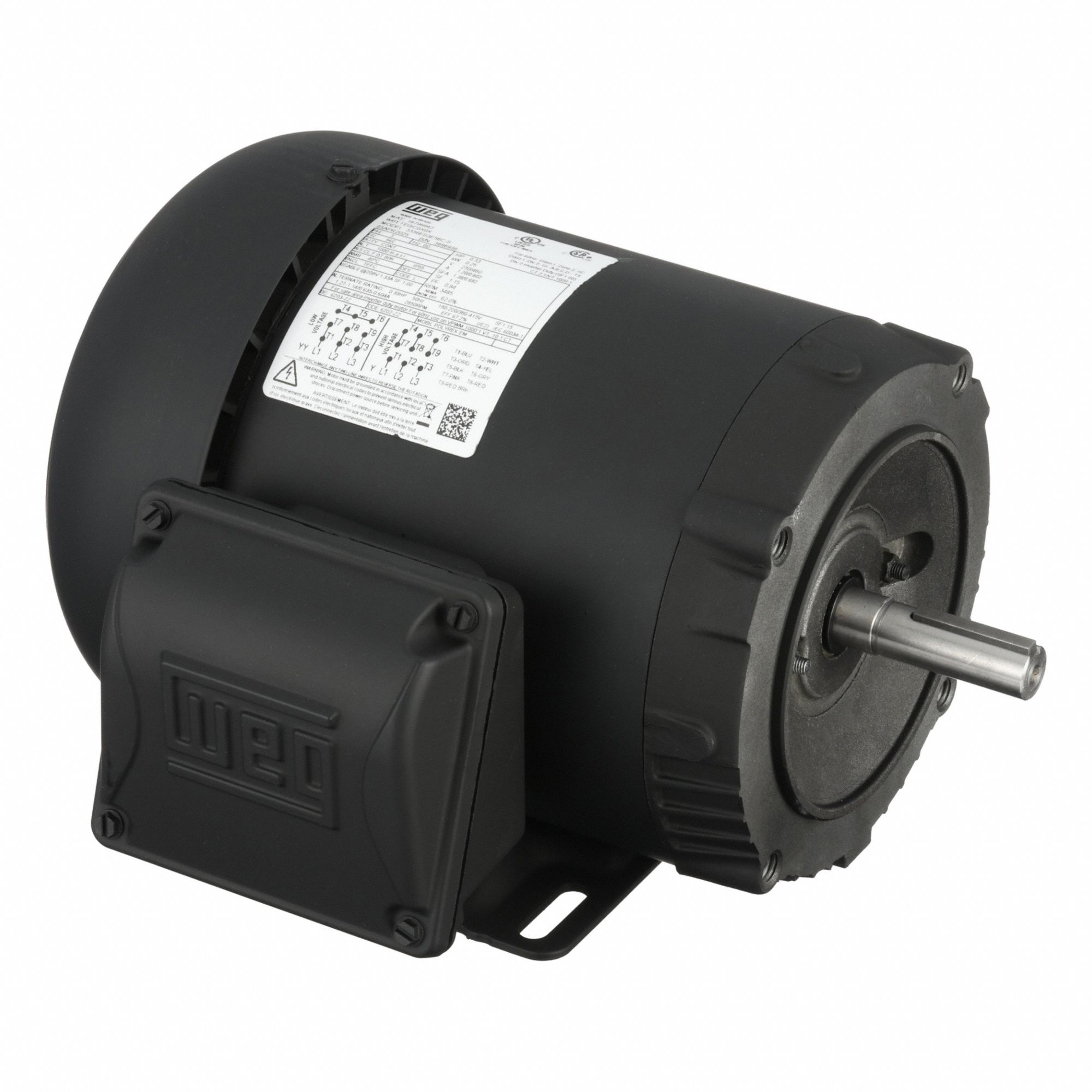

Name: Weg 3G-OTH-55243 WEG General Purpose Motor: C-Face/Rigid Base Mount, Totally Enclosed Fan Cooled, 1/3 hp, 3,485 RPM (MPN .3336ES3E56C-S). Key specifications — Brand: WEG; Nameplate Voltage @ 60 Hz: 208-230/460V AC; Full Load Current @ 60 Hz: 1.33-1.20/0.602 A; Nameplate RPM @ 60 Hz: 3,485 RPM; Motor Enclosure: TEFC.
Brand: Weg

The WEG General Purpose Motor is a C-Face with Rigid Base 3-Phase AC motor in a TEFC enclosure. It delivers 1/3 hp at 3,485 RPM (60 Hz) and operates on 208-230/460V AC with a full load current of 1.33-1.20/0.602 A.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Totally Enclosed Fan Cooled, 1/3 hp, 3,485 RPM
Brand	WEG
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	3,485 RPM
Manufacturer Part Number	.3336ES3E56C-S
Full Load Current @ 60 Hz	1.33-1.20/0.602 A
Nameplate Voltage @ 60 Hz	208-230/460V AC
