Weg 3G-OTH-55292 — Spesifikasi Teknis

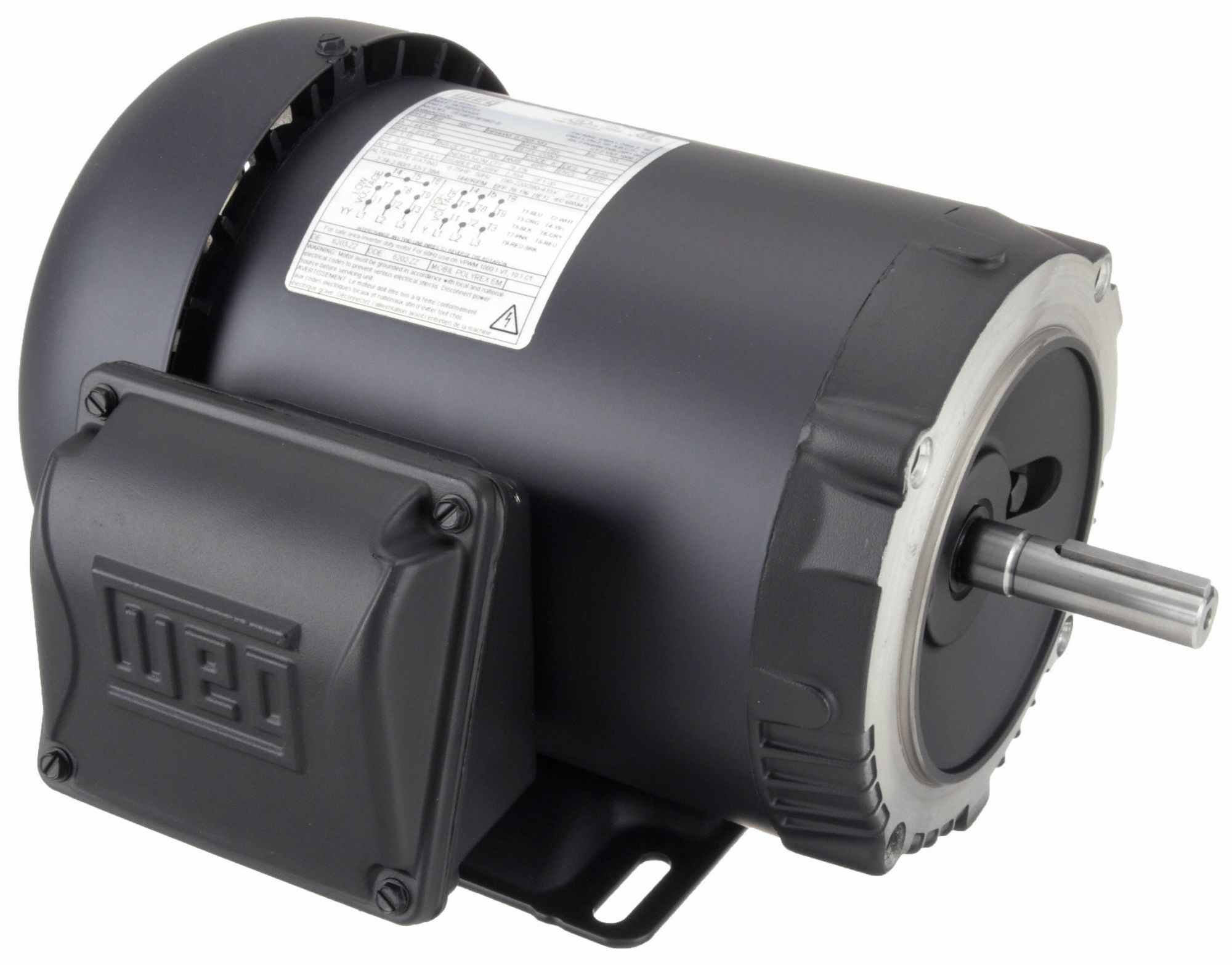

Name: Weg 3G-OTH-55292 WEG General Purpose Motor: C-Face/Rigid Base Mount, Totally Enclosed Fan Cooled, 3/4 hp, 1,755 RPM (MPN .7518ES3E56C-S). Key specifications — Brand: WEG; Nameplate Voltage @ 60 Hz: 208-230/460V AC; Full Load Current @ 60 Hz: 2.70-2.44/1.22 A; Nameplate RPM @ 60 Hz: 1,755 RPM; Motor Enclosure: TEFC.
Brand: Weg

The WEG General Purpose Motor is a C-Face with Rigid Base 3-Phase AC motor in a TEFC enclosure. It delivers 3/4 hp at 1,755 RPM (60 Hz) and operates on 208-230/460V AC with a full load current of 2.70-2.44/1.22 A.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Totally Enclosed Fan Cooled, 3/4 hp, 1,755 RPM
Brand	WEG
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	1,755 RPM
Manufacturer Part Number	.7518ES3E56C-S
Full Load Current @ 60 Hz	2.70-2.44/1.22 A
Nameplate Voltage @ 60 Hz	208-230/460V AC
