Weg 3G-OTH-68287 — Spesifikasi Teknis

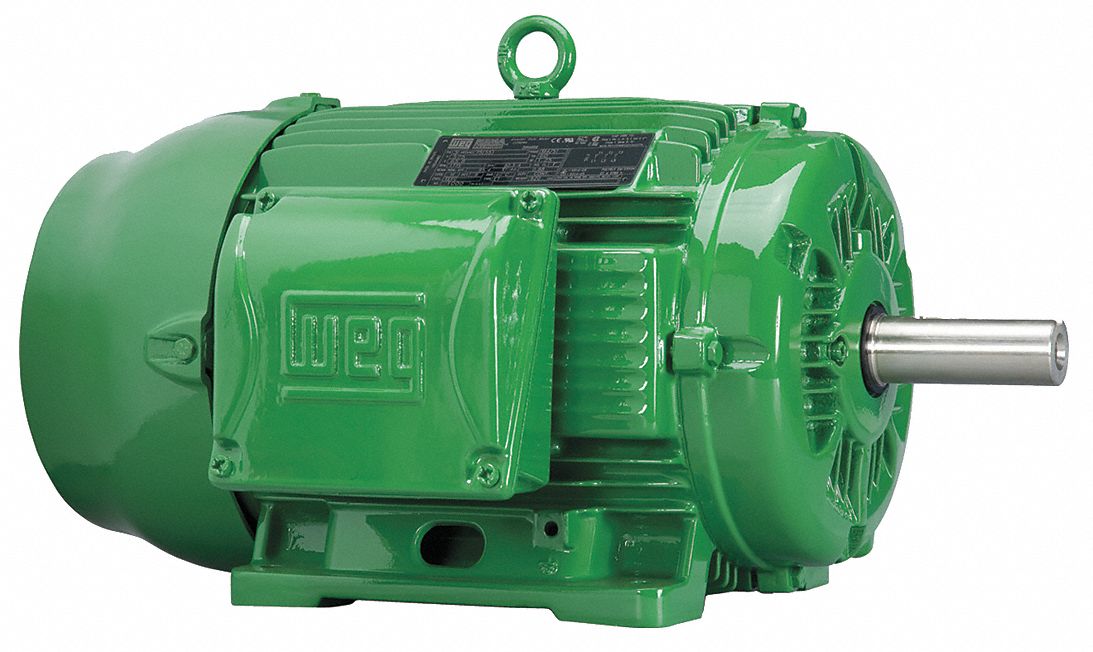

The WEG General Purpose Motor: Rigid Base Mount (SKU 39J109, MPN 01036EG3E215T-W22) is a 10 hp, rigid base 3-phase AC motor with a Totally Enclosed Fan Cooled (TEFC) enclosure. It operates at 3,535 RPM at 60 Hz and is rated for 230/460V AC with a full load current of 23.0/11.5 A.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| AC | 230/460V |
| Type | Totally Enclosed Fan Cooled, 10 hp |
| Brand | WEG |
| Motor Enclosure | TEFC |
| Nameplate RPM @ 60 Hz | 3,535 RPM |
| Manufacturer Part Number | 01036EG3E215T-W22 |
| Full Load Current @ 60 Hz | 23.0/11.5 A |
| Nameplate Voltage @ 60 Hz | 230/460V AC |
