Weg 3G-OTH-76180 — Spesifikasi Teknis

Name: Weg 3G-OTH-76180 WEG General Purpose Motor: Rigid Base Mount, Totally Enclosed Fan Cooled, 25 hp, 230/460V AC (MPN 02512EG3E324T-W22). Key specifications — Brand: WEG; Nameplate Voltage @ 60 Hz: 230/460V AC; Full Load Current @ 60 Hz: 61.6/30.8 A; Nameplate RPM @ 60 Hz: 1,185 RPM; Motor Enclosure: TEFC.
Brand: Weg

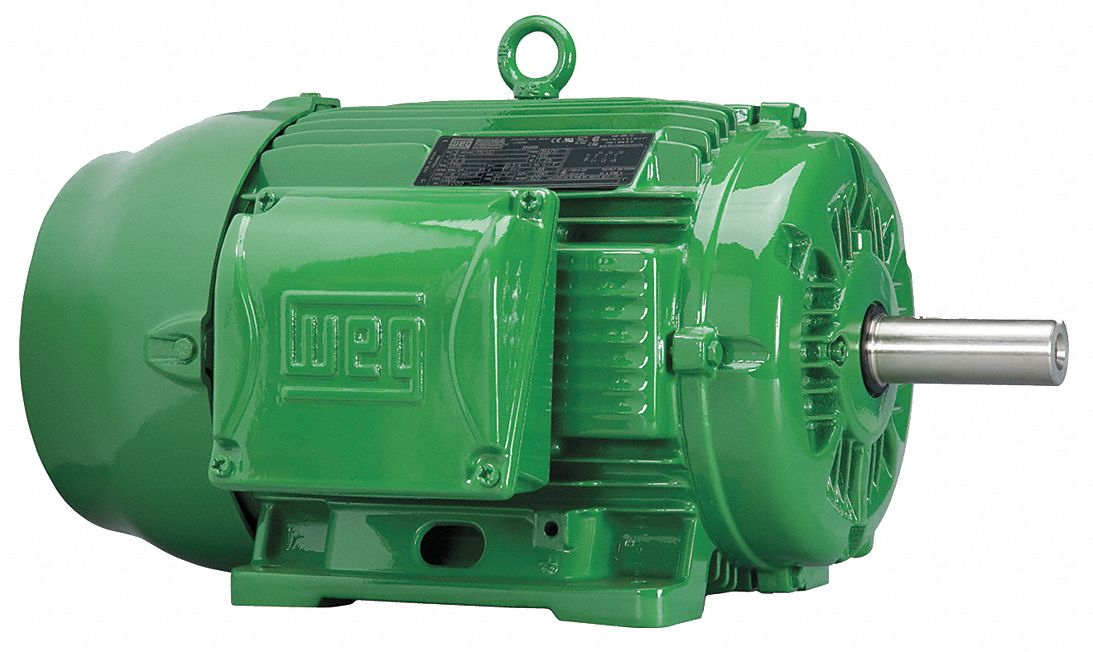

The WEG General Purpose Motor is a Rigid Base 3-Phase AC Motor with a TEFC enclosure. It delivers 25 hp at 1,185 RPM (60 Hz) and operates on 230/460V AC with a full load current of 61.6/30.8 A (MPN 02512EG3E324T-W22).

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
AC	230/460V
Type	Totally Enclosed Fan Cooled, 25 hp
Brand	WEG
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	1,185 RPM
Manufacturer Part Number	02512EG3E324T-W22
Full Load Current @ 60 Hz	61.6/30.8 A
Nameplate Voltage @ 60 Hz	230/460V AC
