Weg 3G-OTH-73665 — Spesifikasi Teknis

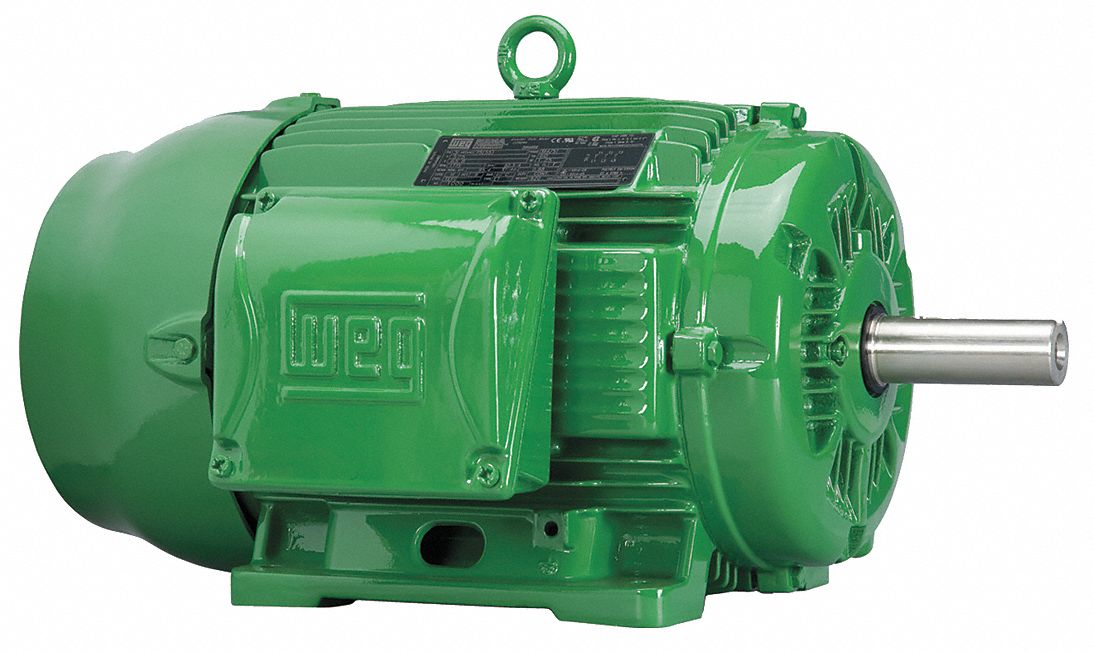

The WEG General Purpose Motor: Rigid Base Mount is a 200 hp, rigid base 3-phase AC motor with a TEFC enclosure. It operates at 3,575 RPM at 60 Hz with a full load current of 217.0 A and a nameplate voltage of 230/460V AC (MPN 20036EG3G447TS-W22).
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| AC | 230/460V |
| Type | Totally Enclosed Fan Cooled, 200 hp |
| Brand | WEG |
| Motor Enclosure | TEFC |
| Nameplate RPM @ 60 Hz | 3,575 RPM |
| Manufacturer Part Number | 20036EG3G447TS-W22 |
| Full Load Current @ 60 Hz | 217.0 A |
| Nameplate Voltage @ 60 Hz | 230/460V AC |
