Weg 3G-OTH-54637 — Spesifikasi Teknis

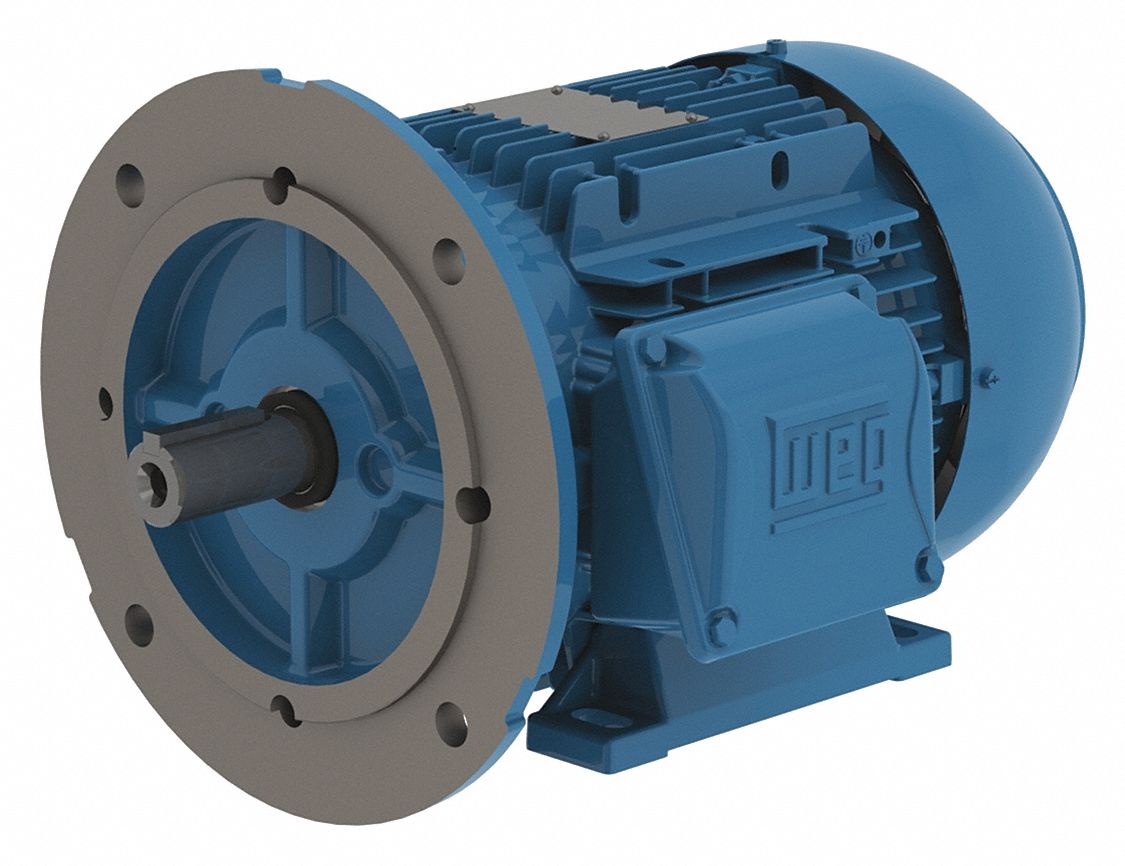

The WEG Metric Motor (MPN 13984005) is a 1 1/2 hp C-Face with Rigid Base 3-Phase IEC Metric General Purpose AC Motor in a 90S frame size. It features a TEFC enclosure, operates at 1762 RPM and 460V AC at 60 Hz, and draws 2.05 A full load amps.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | C-Face/Rigid Base Mount, Totally Enclosed Fan Cooled |
| Brand | WEG |
| Frame Size | 90S |
| Motor Enclosure | TEFC |
| Nameplate RPM @ 60 Hz | 1762 RPM |
| Full Load Amps @ 60 Hz | 2.05 A |
| Manufacturer Part Number | 13984005 |
| Nameplate Voltage @ 60 Hz | 460V AC |
