Weg 3G-OTH-58653 — Spesifikasi Teknis

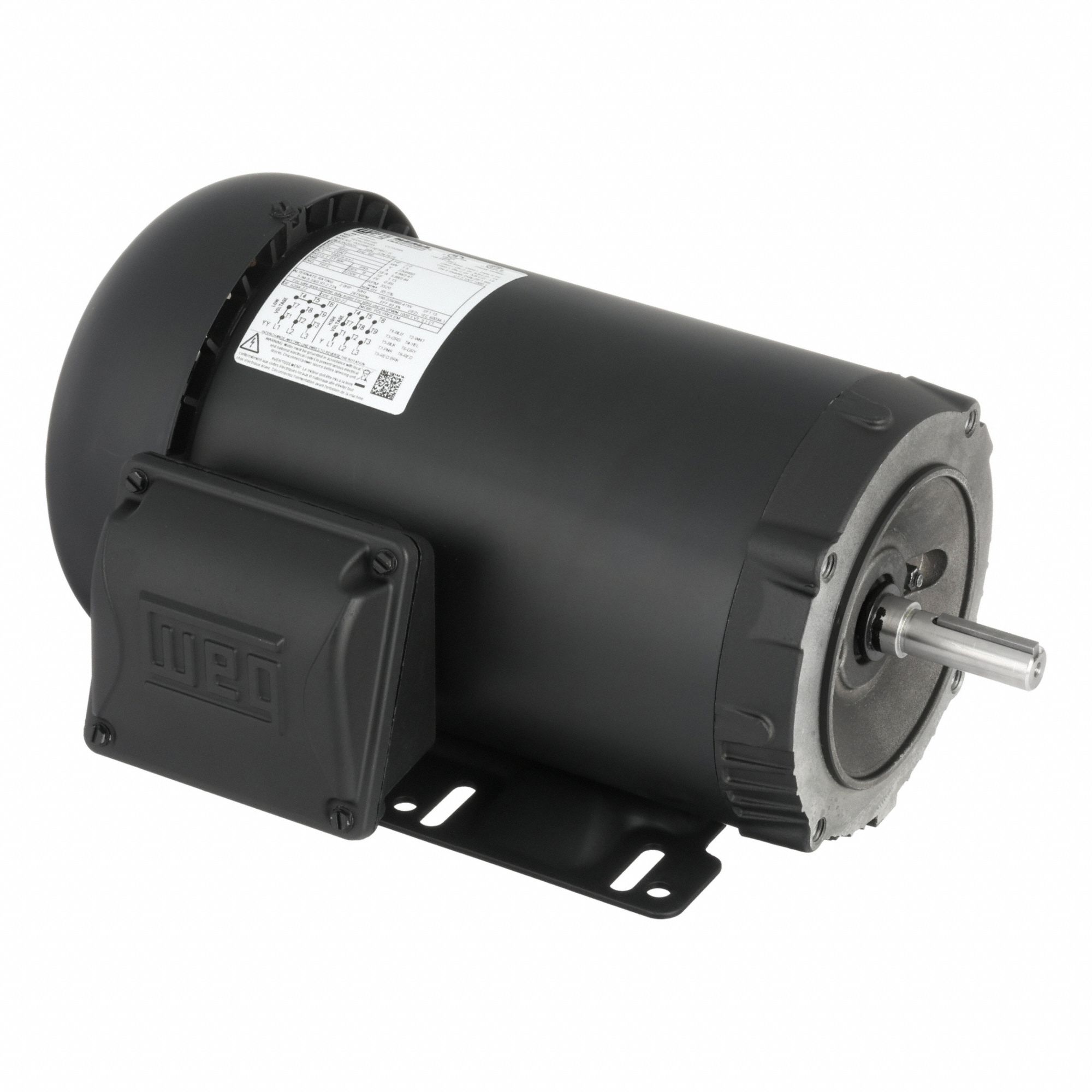

Name: Weg 3G-OTH-58653 WEG General Purpose Motor: C-Face/Rigid Base Mount, Totally Enclosed Fan Cooled, 2 hp, 230/460V AC (MPN 00236ET3E56C-S). Key specifications — Brand: WEG; Nameplate Voltage @ 60 Hz: 230/460V AC; Full Load Current @ 60 Hz: 4.94/2.47 A; Nameplate RPM @ 60 Hz: 3,520 RPM; Motor Enclosure: TEFC.
Brand: Weg

The WEG General Purpose Motor is a C-Face with Rigid Base 3-Phase AC motor, model 00236ET3E56C-S, featuring a TEFC enclosure. It operates at 2 hp with a nameplate RPM of 3,520 RPM at 60 Hz and a full load current of 4.94/2.47 A at 230/460V AC.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
AC	230/460V
Type	Totally Enclosed Fan Cooled, 2 hp
Brand	WEG
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	3,520 RPM
Manufacturer Part Number	00236ET3E56C-S
Full Load Current @ 60 Hz	4.94/2.47 A
Nameplate Voltage @ 60 Hz	230/460V AC
