Weg 3G-OTH-62675 — Spesifikasi Teknis

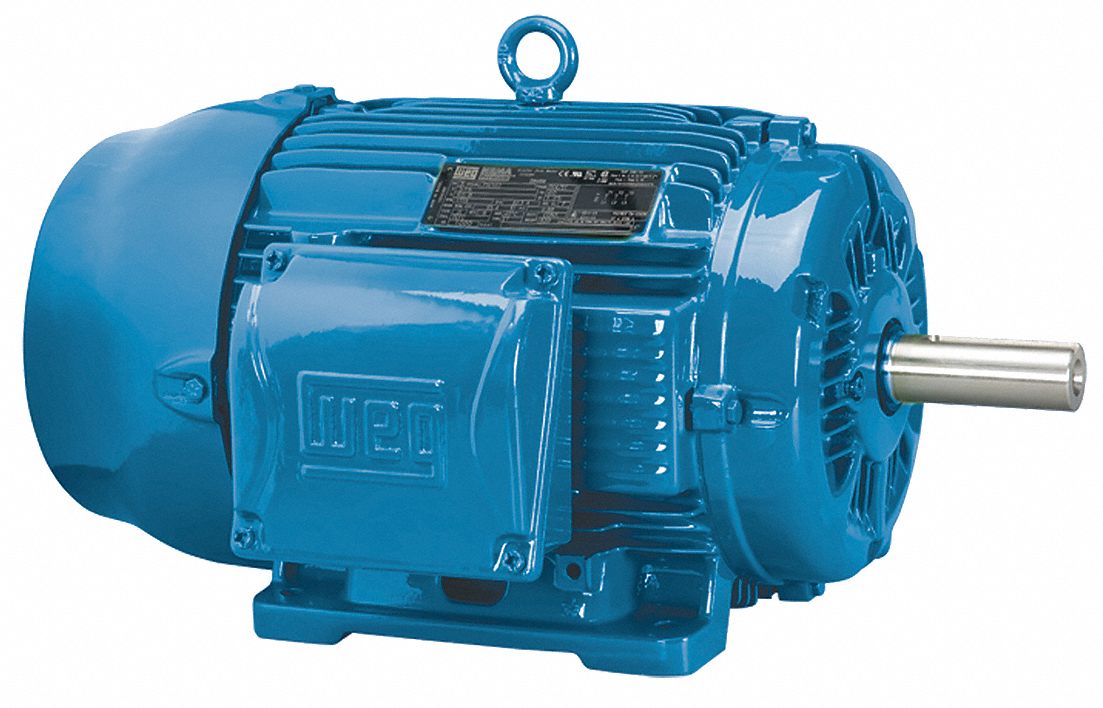

The WEG General Purpose Motor: Rigid Base Mount is a TEFC rigid base 3-phase AC motor rated at 125 hp with a nameplate voltage of 230/460V AC at 60 Hz. It delivers a full load current of 139.0 A and a nameplate RPM of 1,775 RPM at 60 Hz (MPN 12518ET3G444T-W22).
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| AC | 230/460V |
| Type | Totally Enclosed Fan Cooled, 125 hp |
| Brand | WEG |
| Motor Enclosure | TEFC |
| Nameplate RPM @ 60 Hz | 1,775 RPM |
| Manufacturer Part Number | 12518ET3G444T-W22 |
| Full Load Current @ 60 Hz | 139.0 A |
| Nameplate Voltage @ 60 Hz | 230/460V AC |
