Weg 3G-OTH-73772 — Spesifikasi Teknis

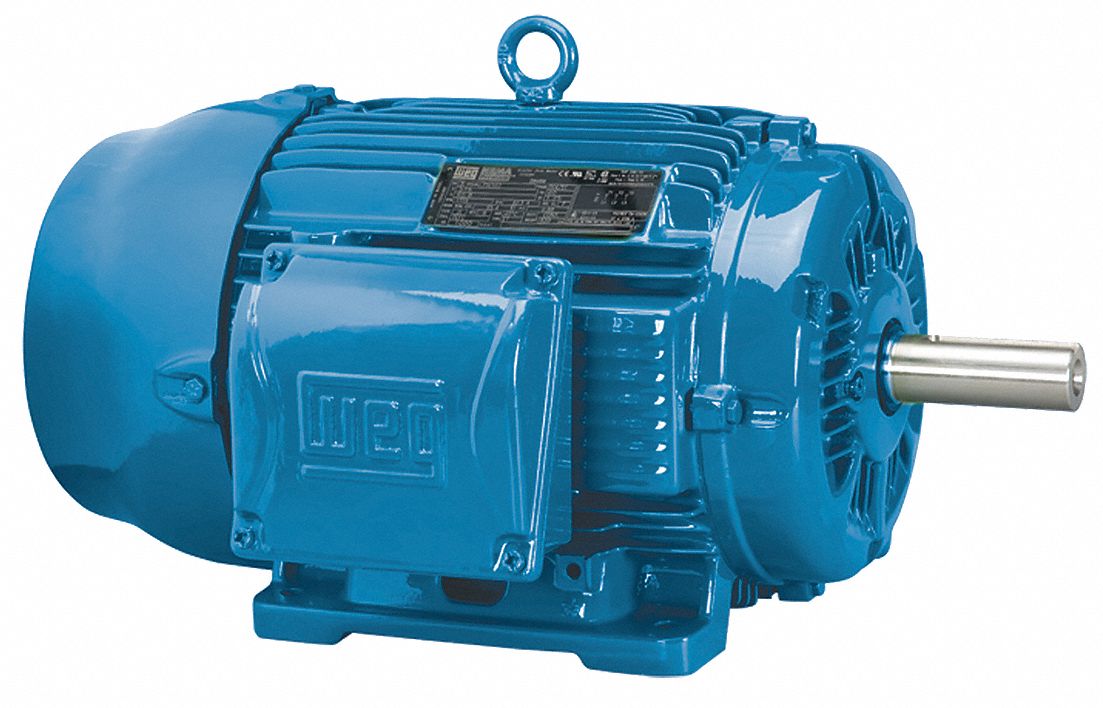

The WEG General Purpose Motor: Rigid Base Mount (SKU 6AJG1, MPN 15036ET3G445TS-W22) is a rigid base 3-phase general purpose AC motor with a TEFC enclosure. It is rated at 150 hp, 460V AC, 3,570 RPM, and has a full load current of 163.0 A at 60 Hz.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| AC | 460V |
| Type | Totally Enclosed Fan Cooled, 150 hp, 3,570 RPM |
| Brand | WEG |
| Motor Enclosure | TEFC |
| Nameplate RPM @ 60 Hz | 3,570 RPM |
| Manufacturer Part Number | 15036ET3G445TS-W22 |
| Full Load Current @ 60 Hz | 163.0 A |
| Nameplate Voltage @ 60 Hz | 460V AC |
