Weg 3G-OTH-60146 — Spesifikasi Teknis

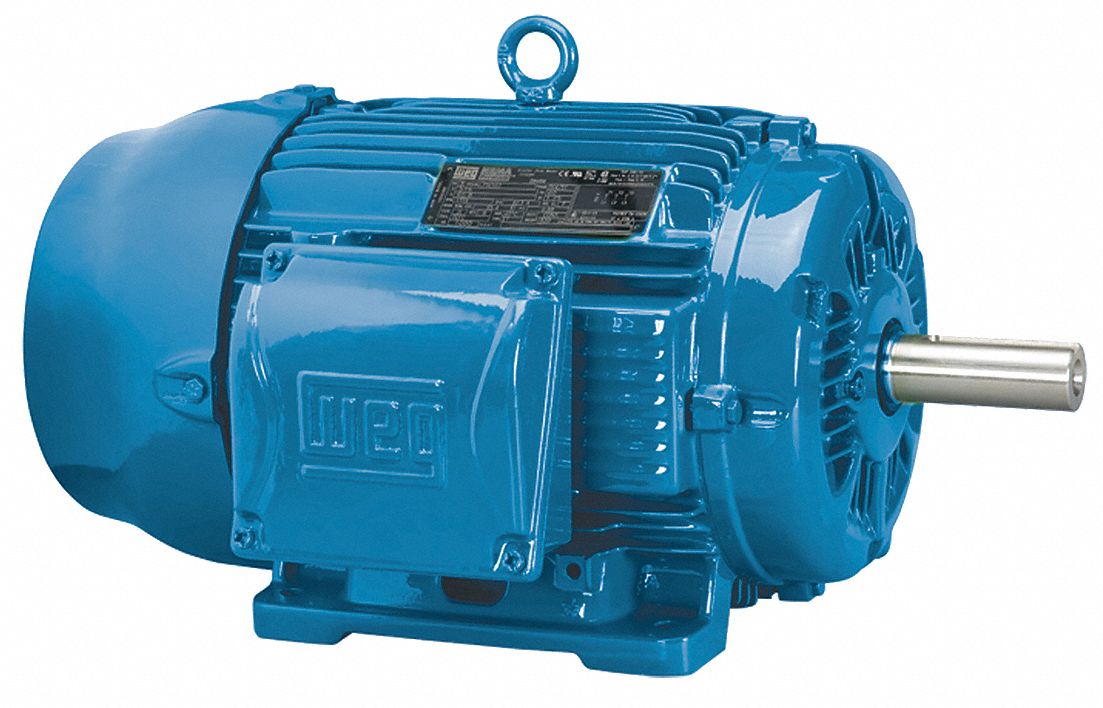

The WEG General Purpose Motor: Rigid Base Mount (MPN 01036ET3H215T-W22) is a 10 hp, TEFC, rigid base 3-phase AC motor. It operates at 3,510 RPM and 575V AC with a full load current of 9.28 A at 60 Hz.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| AC | 575V |
| Type | Totally Enclosed Fan Cooled, 10 hp, 3,510 RPM |
| Brand | WEG |
| Motor Enclosure | TEFC |
| Nameplate RPM @ 60 Hz | 3,510 RPM |
| Manufacturer Part Number | 01036ET3H215T-W22 |
| Full Load Current @ 60 Hz | 9.28 A |
| Nameplate Voltage @ 60 Hz | 575V AC |
