Weg 3G-OTH-79158 — Spesifikasi Teknis

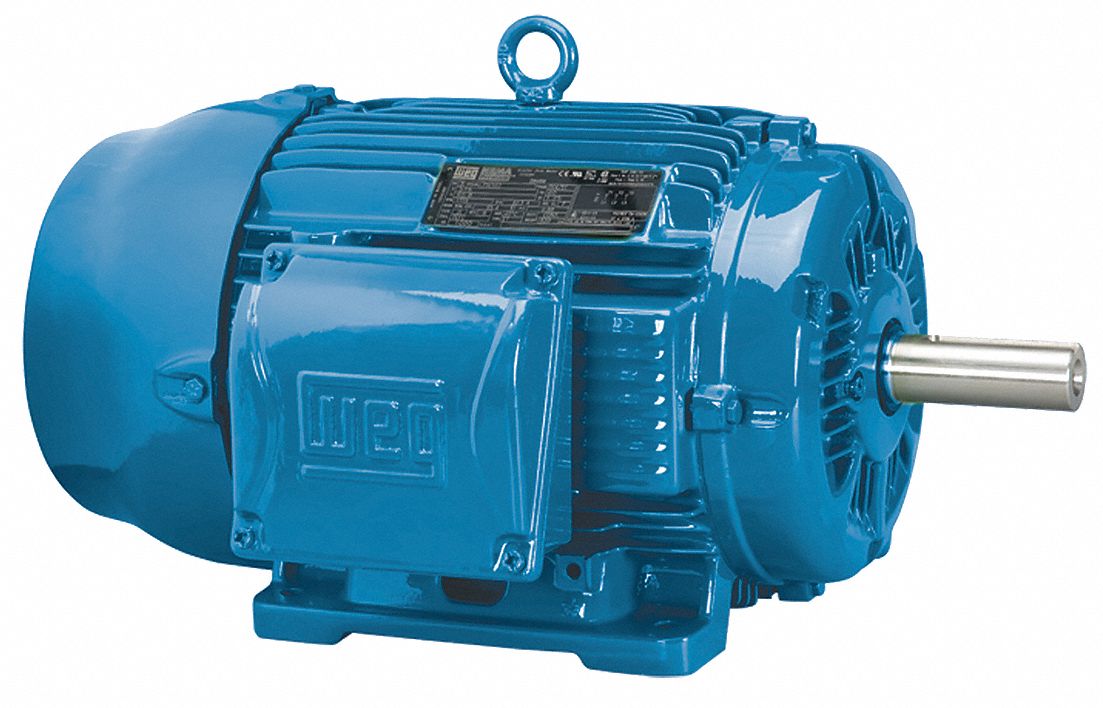

The WEG General Purpose Motor (SKU 6APY3) is a rigid base 3-phase AC motor with a TEFC enclosure. It is rated at 10 hp, 575V AC, 1,175 RPM, and 10.6 A full load current at 60 Hz (MPN 01012ET3H256T-W22).
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| AC | 575V |
| Type | Totally Enclosed Fan Cooled, 10 hp, 1,175 RPM |
| Brand | WEG |
| Motor Enclosure | TEFC |
| Nameplate RPM @ 60 Hz | 1,175 RPM |
| Manufacturer Part Number | 01012ET3H256T-W22 |
| Full Load Current @ 60 Hz | 10.6 A |
| Nameplate Voltage @ 60 Hz | 575V AC |
