Weg 3G-OTH-74974 — Spesifikasi Teknis

Name: Weg 3G-OTH-74974 WEG General Purpose Motor: Rigid Base Mount, Totally Enclosed Fan Cooled, 20 hp, 575V AC, 3,520 RPM (MPN 02036ET3H256T-W22). Key specifications — Brand: WEG; Nameplate Voltage @ 60 Hz: 575V AC; Full Load Current @ 60 Hz: 18.6 A; Nameplate RPM @ 60 Hz: 3,520 RPM; Motor Enclosure: TEFC.
Brand: Weg

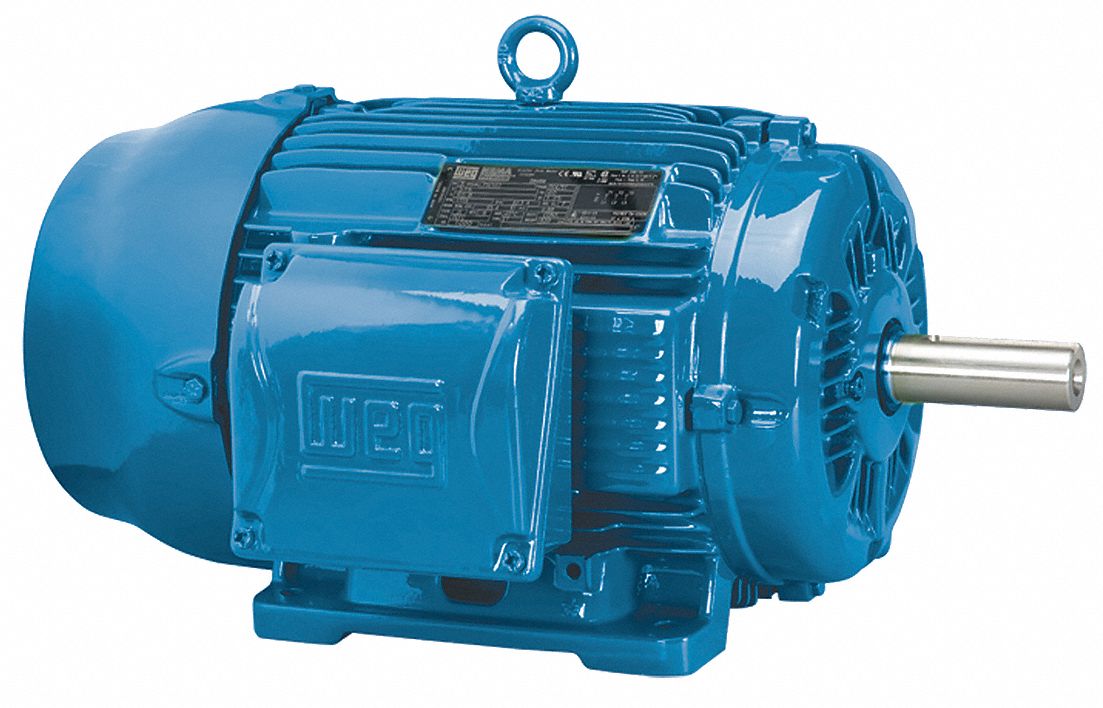

The WEG General Purpose Motor: Rigid Base Mount is a TEFC rigid base 3-phase AC motor rated at 20 hp, 575V AC, 3,520 RPM, and 18.6 A full load current (MPN 02036ET3H256T-W22). This WEG motor is designed for general-purpose industrial applications requiring a Totally Enclosed Fan Cooled enclosure.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
AC	575V
Type	Totally Enclosed Fan Cooled, 20 hp, 3,520 RPM
Brand	WEG
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	3,520 RPM
Manufacturer Part Number	02036ET3H256T-W22
Full Load Current @ 60 Hz	18.6 A
Nameplate Voltage @ 60 Hz	575V AC
