Weg 3G-OTH-76304 — Spesifikasi Teknis

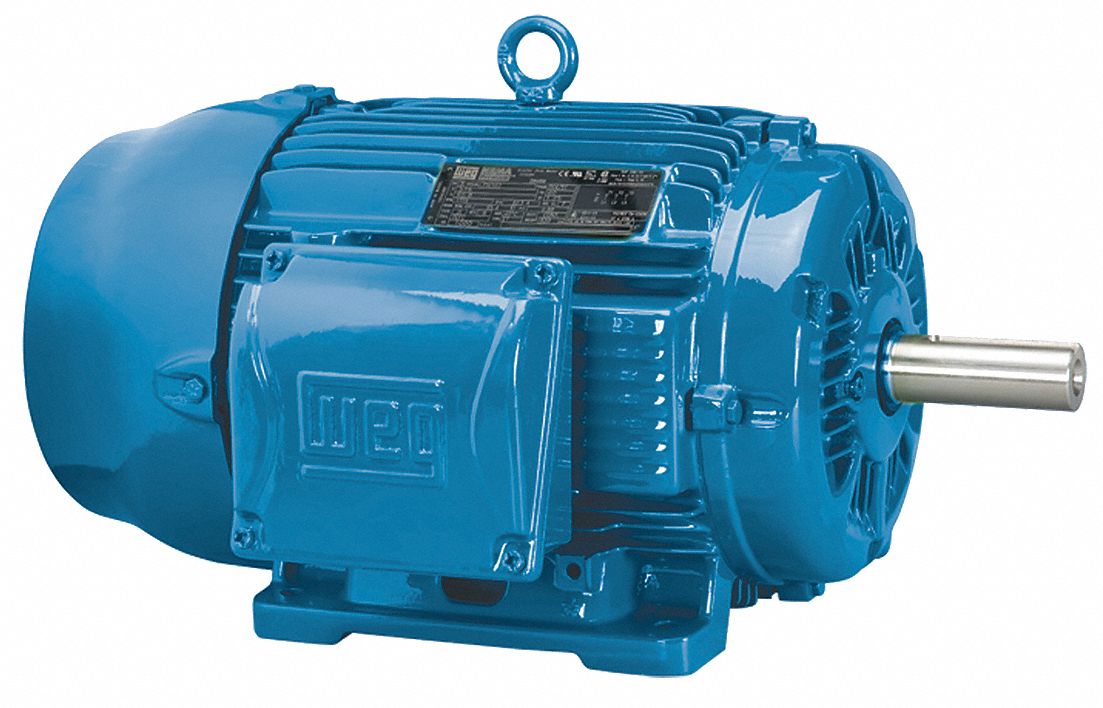

The WEG General Purpose Motor: Rigid Base Mount (SKU 6APZ1, MPN 02518ET3H284T-W22) is a TEFC rigid base 3-phase AC motor rated at 25 hp, 575V AC, 1,725 RPM, and 23.6 A full load current at 60 Hz.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| AC | 575V |
| Type | Totally Enclosed Fan Cooled, 25 hp, 1,725 RPM |
| Brand | WEG |
| Motor Enclosure | TEFC |
| Nameplate RPM @ 60 Hz | 1,725 RPM |
| Manufacturer Part Number | 02518ET3H284T-W22 |
| Full Load Current @ 60 Hz | 23.6 A |
| Nameplate Voltage @ 60 Hz | 575V AC |
