Weg 3G-OTH-76493 — Spesifikasi Teknis

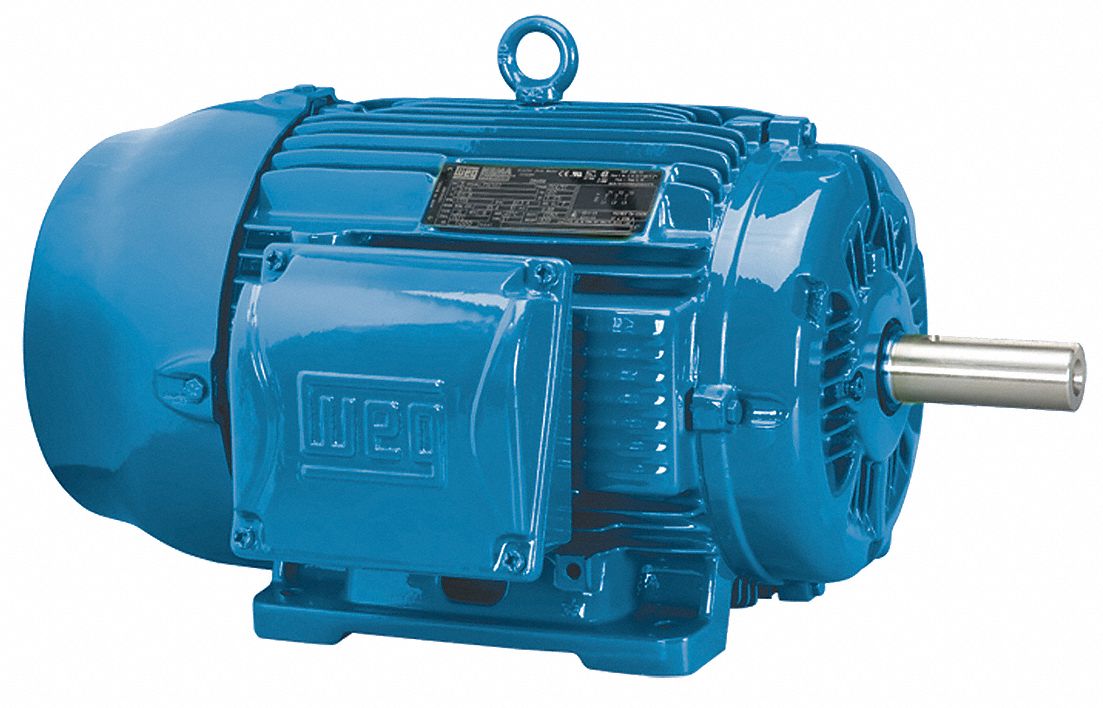

The WEG General Purpose Motor is a rigid base 3-phase AC motor with a TEFC enclosure. It is rated at 40 hp, 575V AC, 3,490 RPM, and 36.6 A full load current at 60 Hz (MPN 04036ET3H324TS-W22).
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| AC | 575V |
| Type | Totally Enclosed Fan Cooled, 40 hp, 3,490 RPM |
| Brand | WEG |
| Motor Enclosure | TEFC |
| Nameplate RPM @ 60 Hz | 3,490 RPM |
| Manufacturer Part Number | 04036ET3H324TS-W22 |
| Full Load Current @ 60 Hz | 36.6 A |
| Nameplate Voltage @ 60 Hz | 575V AC |
