Weg 3G-OTH-73320 — Spesifikasi Teknis

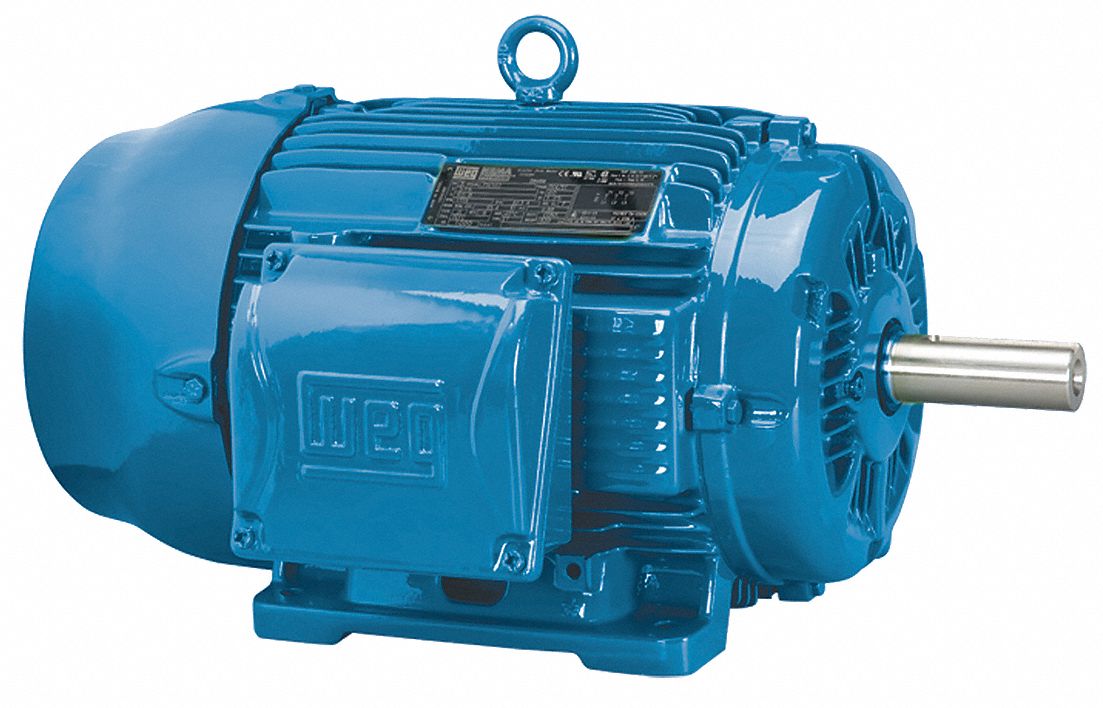

The WEG General Purpose Motor: Rigid Base Mount is a rigid base 3-phase general purpose AC motor with a TEFC enclosure. It is rated at 100 hp, 575V AC, 1,775 RPM, and has a full load current of 90.4 A at 60 Hz (MPN 10018ET3H405T-W22).
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| AC | 575V |
| Type | Totally Enclosed Fan Cooled, 100 hp, 1,775 RPM |
| Brand | WEG |
| Motor Enclosure | TEFC |
| Nameplate RPM @ 60 Hz | 1,775 RPM |
| Manufacturer Part Number | 10018ET3H405T-W22 |
| Full Load Current @ 60 Hz | 90.4 A |
| Nameplate Voltage @ 60 Hz | 575V AC |
