Weg 3G-OTH-54949 — Spesifikasi Teknis

Name: Weg 3G-OTH-54949 WEG General Purpose Motor: C-Face/Rigid Base Mount, Totally Enclosed Fan Cooled, 2 hp, 230/460V AC (MPN 00218ET3E145TC-W22). Key specifications — Brand: WEG; Nameplate Voltage @ 60 Hz: 230/460V AC; Full Load Current @ 60 Hz: 5.52/2.76 A; Nameplate RPM @ 60 Hz: 1,755 RPM; Motor Enclosure: TEFC.
Brand: Weg

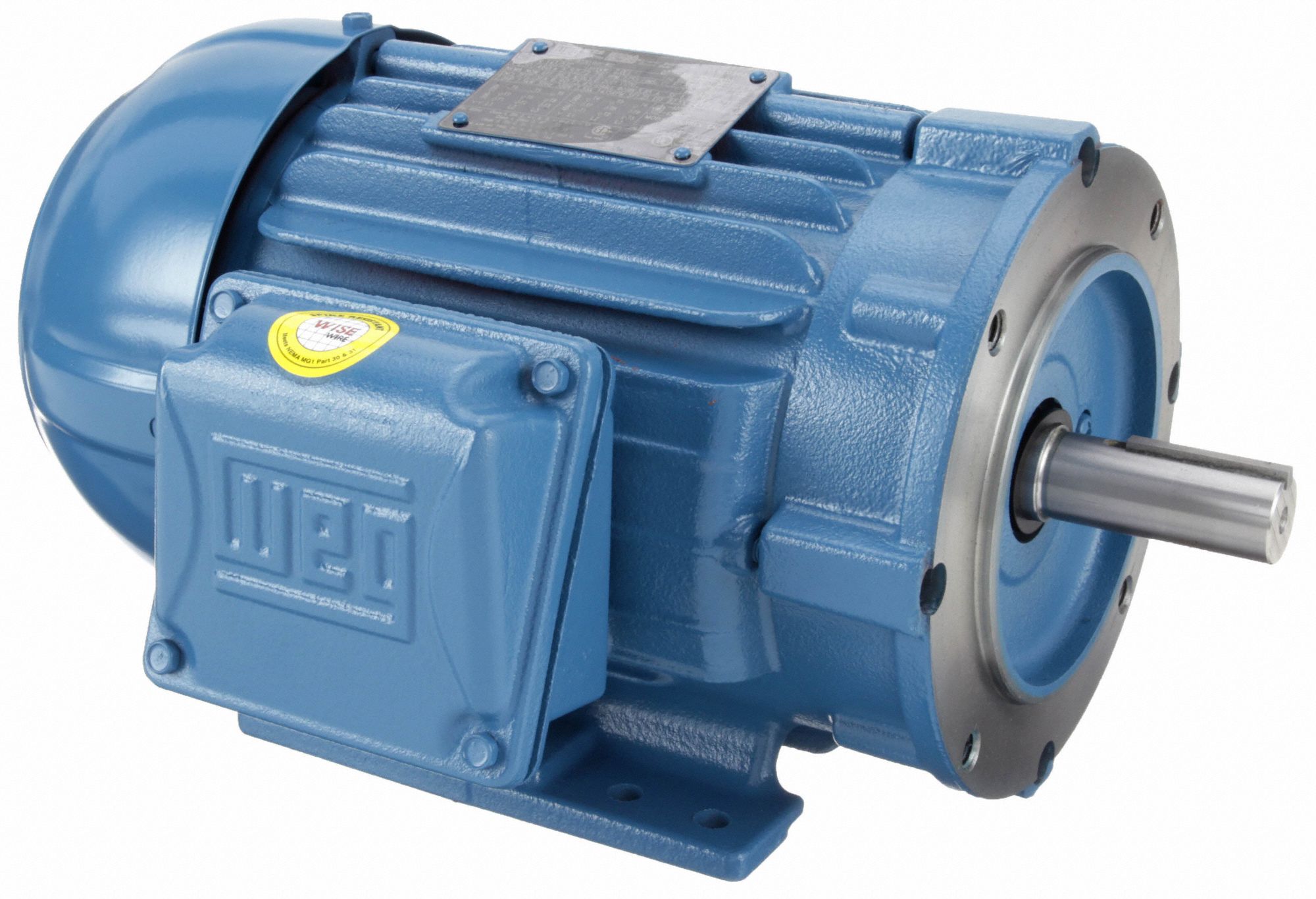

The WEG General Purpose Motor: C-Face/Rigid Base Mount (MPN 00218ET3E145TC-W22) is a 2 hp, TEFC, 3-phase AC motor with a C-Face and rigid base mount. It operates at 1,755 RPM at 60 Hz and is rated for 230/460V AC with a full load current of 5.52/2.76 A.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
AC	230/460V
Type	Totally Enclosed Fan Cooled, 2 hp
Brand	WEG
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	1,755 RPM
Manufacturer Part Number	00218ET3E145TC-W22
Full Load Current @ 60 Hz	5.52/2.76 A
Nameplate Voltage @ 60 Hz	230/460V AC
