Weg 3G-OTH-75508 — Spesifikasi Teknis

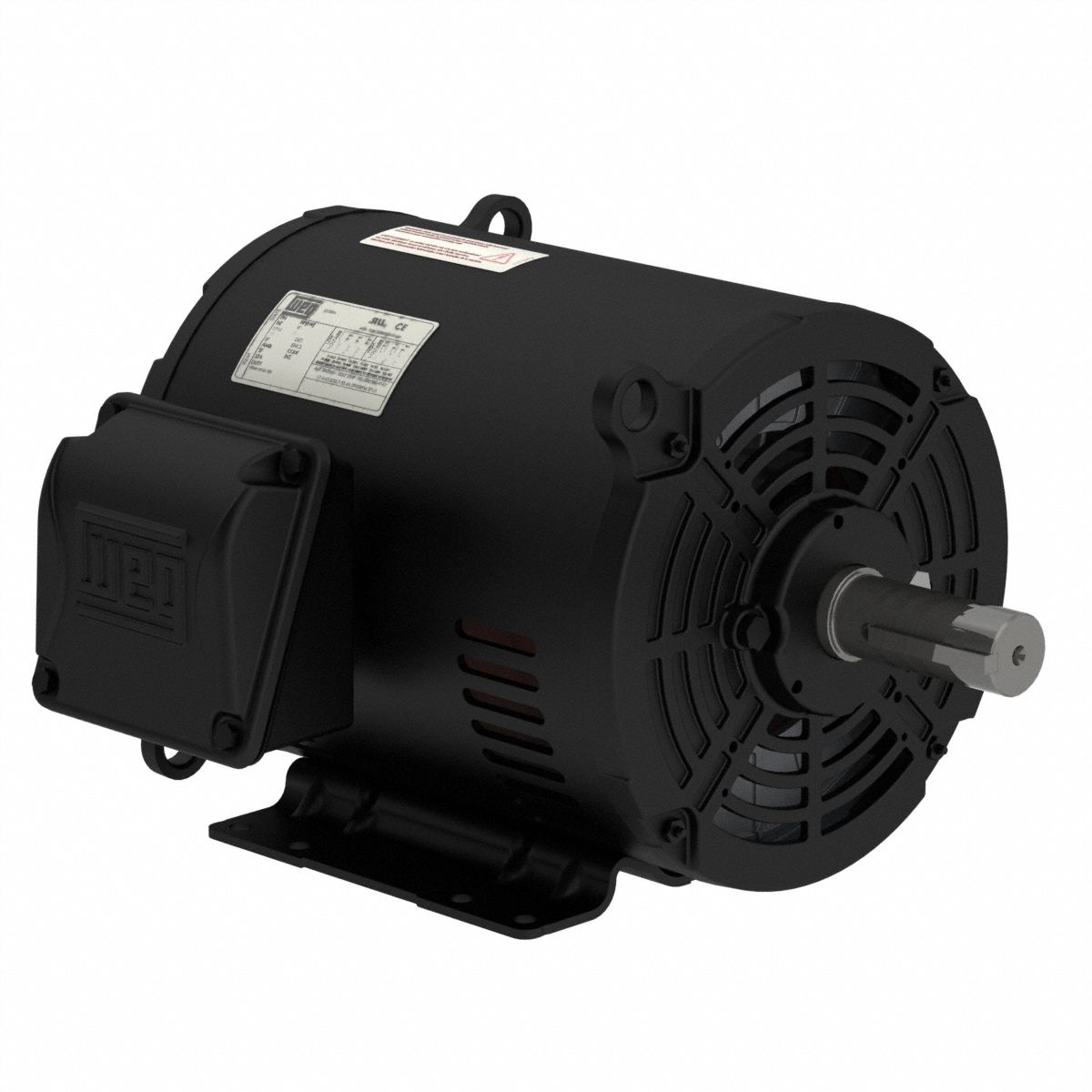

The WEG General Purpose Motor: Rigid Base Mount (SKU 827DG4) is a rigid base 3-phase general purpose AC motor with an ODP enclosure. It delivers 10 hp at 1,770 RPM (60 Hz) and operates on 230/460V AC with a full load current of 12.4 A. The motor features a 213-5T frame size (MPN 01018OT3E215T-SG).
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | Open Drip Proof, 10 hp, 1,770 RPM |
| Brand | WEG |
| Frame Size | 213-5T |
| Motor Enclosure | ODP |
| Nameplate RPM @ 60 Hz | 1,770 RPM |
| Manufacturer Part Number | 01018OT3E215T-SG |
| Full Load Current @ 60 Hz | 12.4 A |
| Nameplate Voltage @ 60 Hz | 230/460V AC |
