Weg 3G-OTH-78620 — Spesifikasi Teknis

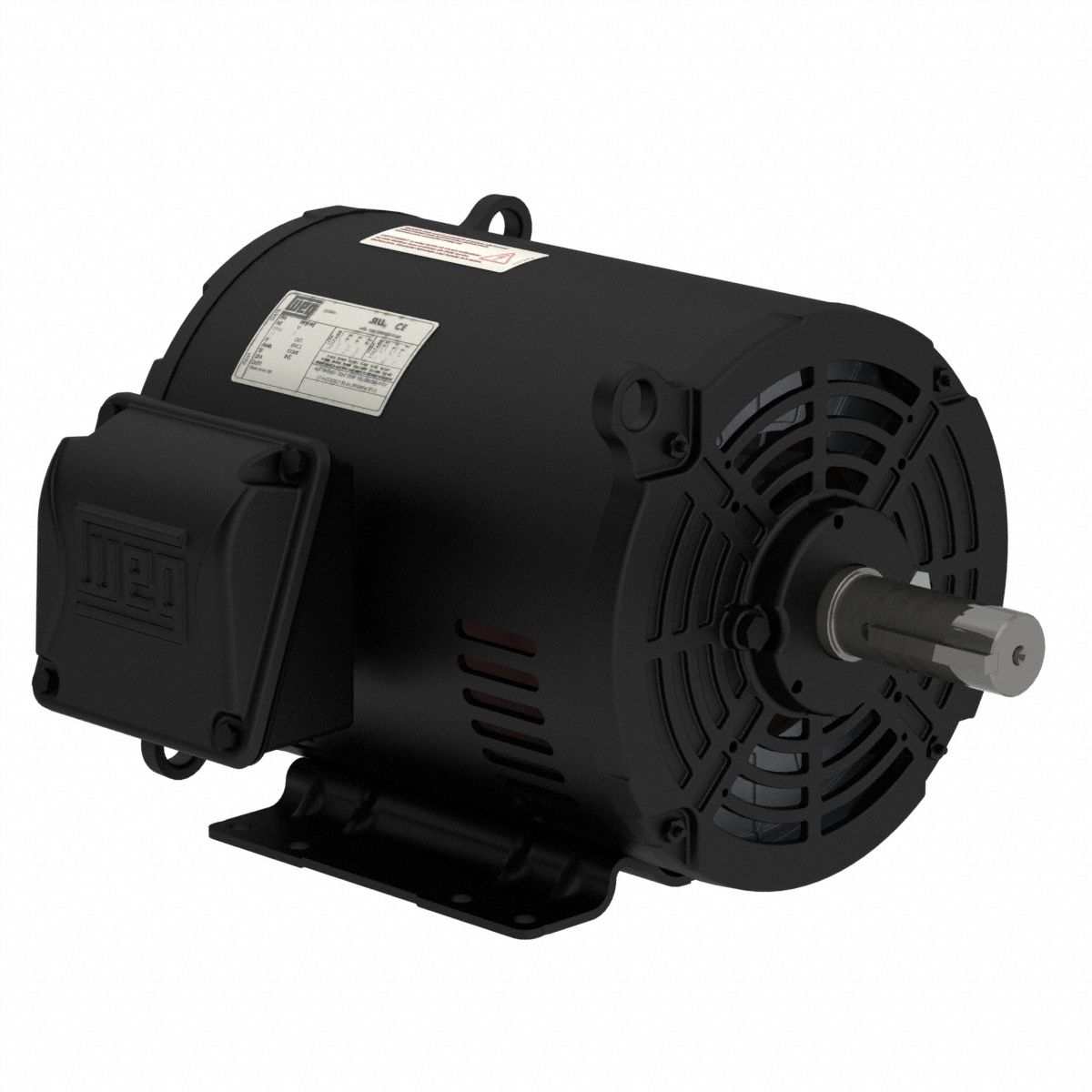

The WEG General Purpose Motor: Rigid Base Mount is a rigid base 3-phase general purpose AC motor with an ODP enclosure. It delivers 3 hp at 1,765 RPM (60 Hz) and operates at 190V AC with a full load current of 3.9 A. This model, MPN 00318OT3E182T-SG, features a 182-4T frame size.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | Open Drip Proof, 3 hp, 1,765 RPM |
| Brand | WEG |
| Frame Size | 182-4T |
| Motor Enclosure | ODP |
| Nameplate RPM @ 60 Hz | 1,765 RPM |
| Manufacturer Part Number | 00318OT3E182T-SG |
| Full Load Current @ 60 Hz | 3.9 A |
| Nameplate Voltage @ 60 Hz | 190V AC |
