Weg 3G-OTH-71983 — Spesifikasi Teknis

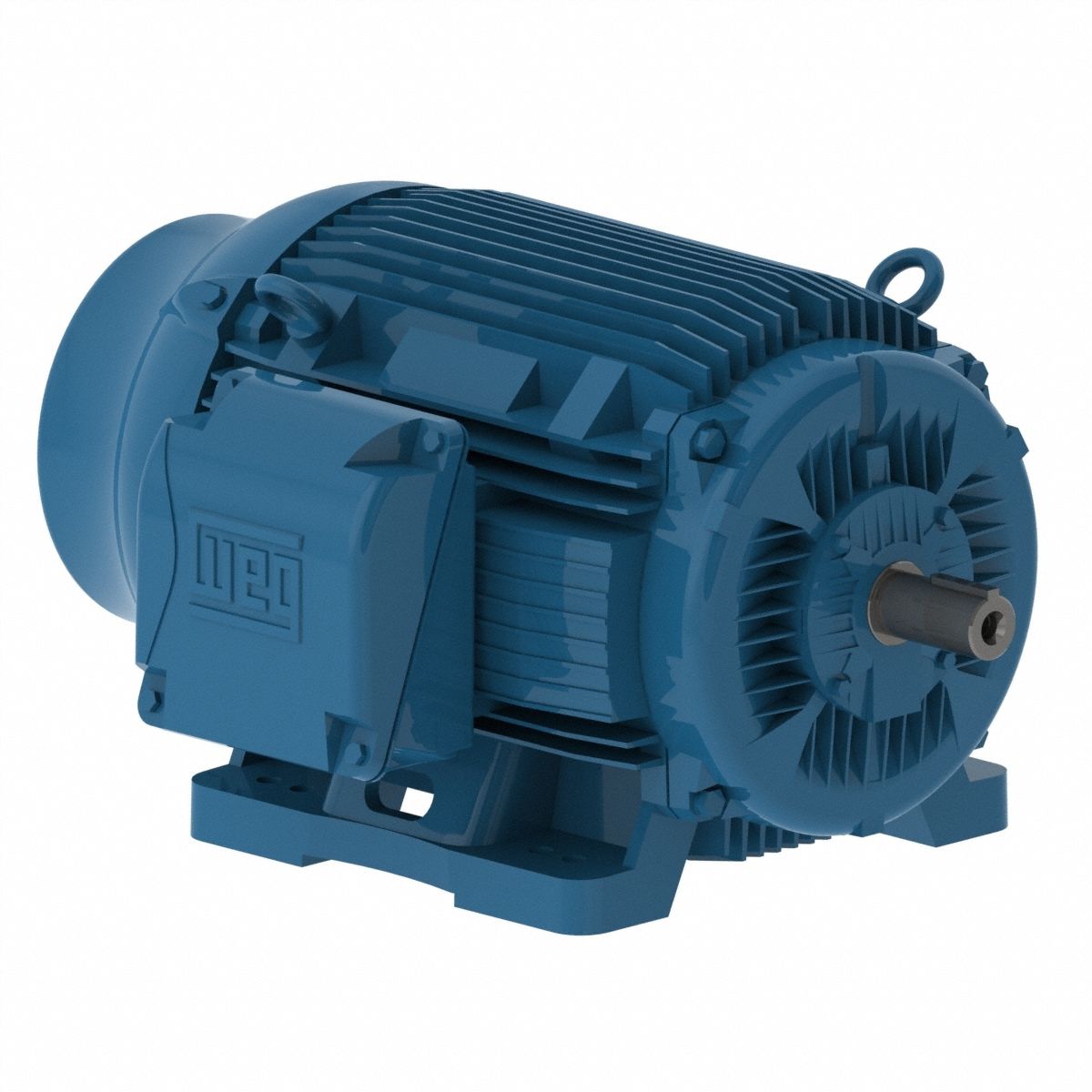

The WEG General Purpose Motor: Rigid Base Mount (SKU 827DJ7, MPN 04012ET3E364T-W22G) is a 40 hp, rigid base 3-phase AC motor with a TEFC enclosure. It operates at 1,760 RPM and 230/460V AC, drawing 46.5 A full load current at 60 Hz.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | Totally Enclosed Fan Cooled, 40 hp |
| Brand | WEG |
| AC/380V AC | 230/460V |
| Motor Enclosure | TEFC |
| Nameplate RPM @ 60 Hz | 1,760 RPM |
| Manufacturer Part Number | 04012ET3E364T-W22G |
| Full Load Current @ 60 Hz | 46.5 A |
| Nameplate Voltage @ 60 Hz | 230/460V AC |
