Weg 3G-OTH-71991 — Spesifikasi Teknis

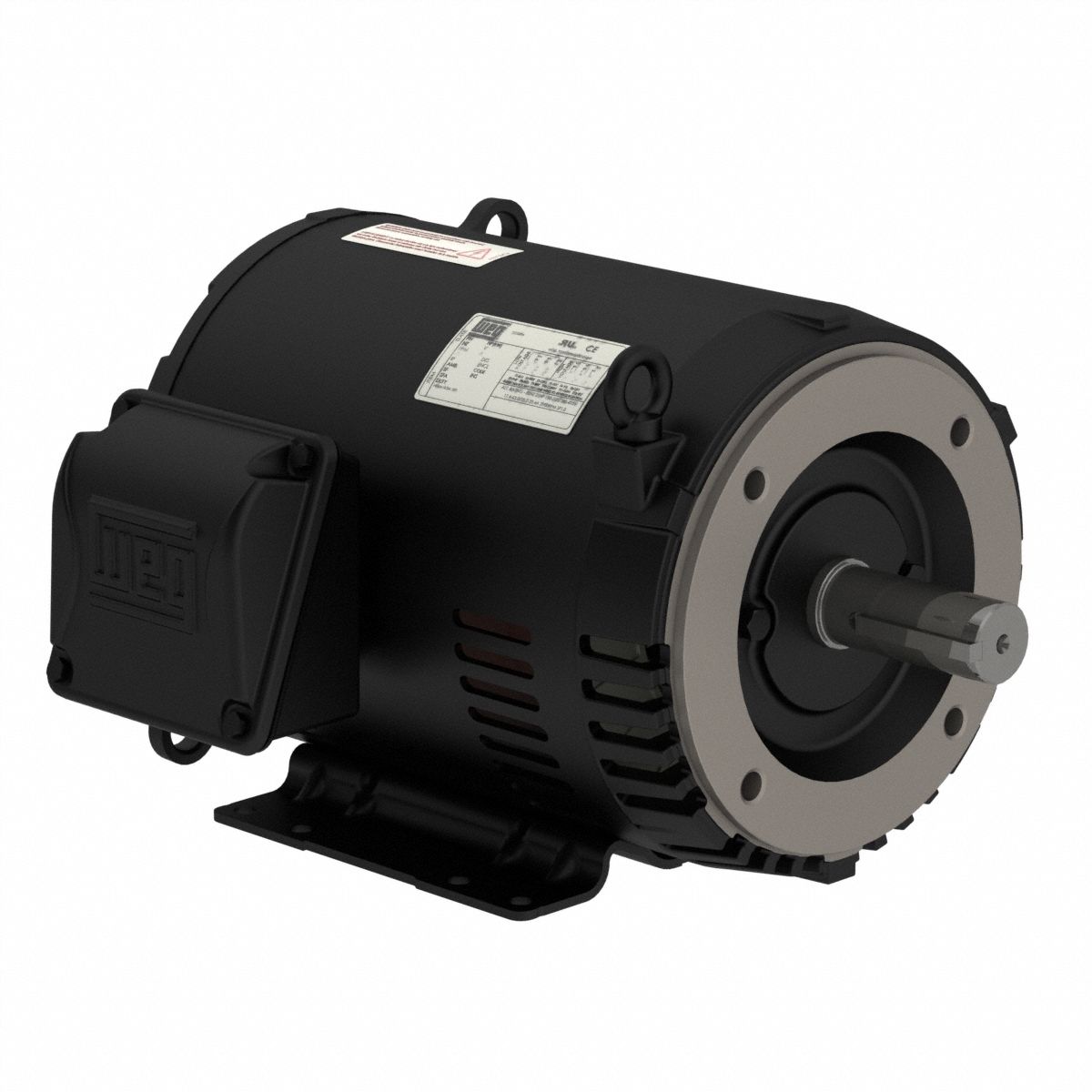

The WEG General Purpose Motor: Rigid Base Mount is a rigid base 3-phase general purpose AC motor with an ODP enclosure. It delivers 20 hp at 1,770 RPM (60 Hz) and operates at 190V AC with a full load current of 25.0 A, featuring a 254-6TC frame size (MPN 02018OT3E256TC-SG).
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | Open Drip Proof, 20 hp, 1,770 RPM |
| Brand | WEG |
| Frame Size | 254-6TC |
| Motor Enclosure | ODP |
| Nameplate RPM @ 60 Hz | 1,770 RPM |
| Manufacturer Part Number | 02018OT3E256TC-SG |
| Full Load Current @ 60 Hz | 25.0 A |
| Nameplate Voltage @ 60 Hz | 190V AC |
