DAKE

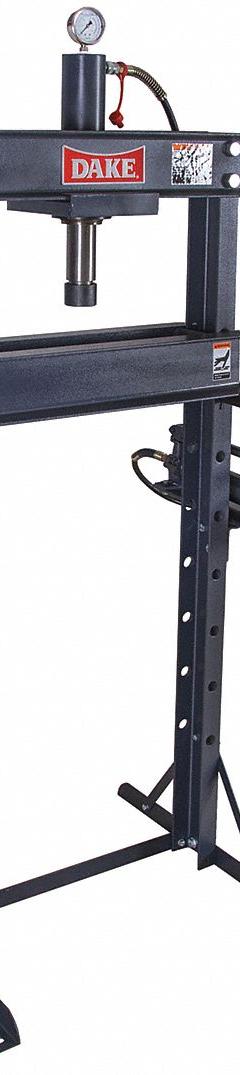

When selecting a DAKE manual H-frame hydraulic press, consider the tonnage capacity (10, 20, or 30 tons), ram stroke length, throat depth, and bed dimensions. For example, the 10-ton model (MPN 972210) has a ram stroke of 10 inches and a throat depth of 5 inches, while the 20-ton model (MPN 971001) offers a 10-inch stroke and 6-inch throat depth. The 30-ton model (MPN 971002) provides a 10-inch stroke and 7-inch throat depth. These dimensions affect the size of workpieces that can be accommodated. Also, check the manual pump operation and pressure gauge range for precise force control.

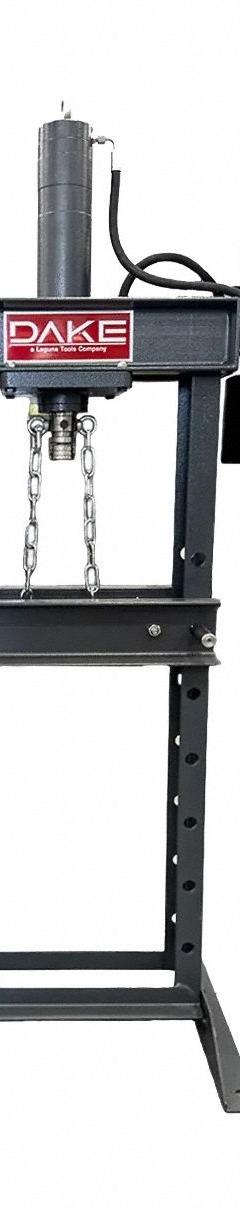

DAKE manual H-frame hydraulic presses require hand-operated pumps to generate hydraulic pressure, making them suitable for intermittent or low-volume tasks where operator control is needed. Electric H-frame presses, such as the 10-ton 120V AC model (MPN 971020), use a motor-driven pump for automated operation, reducing manual effort and increasing cycle speed for repetitive applications. Electric models require a power source (110V for the listed model) and are typically used in production environments. Both types feature welded steel frames and safety guards.

DAKE H-frame hydraulic presses include safety features such as a pressure gauge for monitoring force, a relief valve to prevent overloading, and a safety guard or shield to protect the operator from moving parts. The manual models have a hand-operated pump with a release valve for controlled descent. The electric models include a motor start/stop switch and emergency stop button. Always follow manufacturer guidelines for safe operation, including proper workpiece positioning and use of personal protective equipment.

Yes, DAKE hydraulic presses are versatile and can be used for bending, straightening, forming, and assembly tasks in addition to pressing. The H-frame design provides a stable platform for applying controlled force to metal, plastic, or composite materials. Common applications include bearing installation, gear removal, and metal forming in automotive repair, metalworking, and industrial maintenance. The adjustable bed height and ram stroke allow for accommodating various workpiece sizes.

Lead times for DAKE presses from 3G Electric depend on stock availability and shipping destination. As a global distributor, 3G Electric maintains inventory of common models like the 10-ton manual (MPN 972210) and 20-ton manual (MPN 971001). For standard SKUs, lead times typically range from 1 to 4 weeks, including logistics. Custom or less common models may require longer lead times. Contact 3G Electric for specific availability and shipping estimates.

Yes — 3G Electric (S) Pte. Ltd. supplies DAKE products. We stock the DAKE catalog and supply genuine factory-original products with full manufacturer warranty and technical support.
