PIC GAUGES logo

PIC GAUGES

PIC GAUGES is a brand of industrial pressure gauges and diaphragm seal assemblies, distributed globally by 3G Electric. The product line centers on dial-type pressure gauges with copper or stainless steel wetted parts, available in panel-mount and direct-mount configurations. Key product families include the 103D series U-clamp panel-mount gauges with brass/copper wetted parts, the 104D series front-flange panel-mount gauges with copper wetted parts, and the 301L series pressure gauges with 316 stainless steel diaphragm seals (mini-seals) in both male- and female-threaded versions. These gauges cover pressure ranges from 0 psi to 3,000 psi, with dial sizes of 2 in and 2 1/2 in. Accuracy specifications are ±3-2-3% for the 103D and 104D series, and ±2-1-2% for the 301L series with diaphragm seals. The 301L series gauges are available with glycerin fill in the gauge case or seal, or with no case liquid, depending on the model. The diaphragm seals are constructed from 316 stainless steel, suitable for corrosive or viscous media. The 103D and 104D series feature copper wetted parts, appropriate for non-corrosive fluids such as air, water, or oil. Connection types include 1/4 in NPT male center back for panel-mount models, and bottom or center back connections for the diaphragm seal models. The gauges are designed for industrial applications requiring reliable pressure indication in environments where vibration resistance is not specified. 3G Electric stocks these PIC GAUGES products for global shipment, supporting plant engineers and maintenance managers with a range of pressure measurement solutions for hydraulic systems, pneumatic lines, and process equipment. The brand's focus on standardized dial gauges with optional diaphragm seals allows for straightforward integration into existing piping and panel layouts.

Genuine
OEM Parts
Expert
Tech Support
1 Hari
Respons Penawaran
Seluruh Dunia
Asal
Pengiriman ke Seluruh Dunia
Pengiriman udara & laut
Lembar Data Atas Permintaan
Spesifikasi teknis & gambar
Respons Penawaran 1 Hari
Tim berbasis di Singapore
Stok siap tersedia & bea cukai ditangani6–10 business days door-to-door; Bea Cukai clearance typically 3–5 business days.Pengiriman ke: Jakarta, Surabaya, Bandung, Medan, Batam
Jelajahi:
Tampilkan
Halaman 1 dari 1

Tentang PIC GAUGES

PIC GAUGES is a brand of industrial pressure gauges and diaphragm seal assemblies, distributed globally by 3G Electric. The product line centers on dial-type pressure gauges with copper or stainless steel wetted parts, available in panel-mount and direct-mount configurations. Key product families include the 103D series U-clamp panel-mount gauges with brass/copper wetted parts, the 104D series front-flange panel-mount gauges with copper wetted parts, and the 301L series pressure gauges with 316 stainless steel diaphragm seals (mini-seals) in both male- and female-threaded versions. These gauges cover pressure ranges from 0 psi to 3,000 psi, with dial sizes of 2 in and 2 1/2 in. Accuracy specifications are ±3-2-3% for the 103D and 104D series, and ±2-1-2% for the 301L series with diaphragm seals. The 301L series gauges are available with glycerin fill in the gauge case or seal, or with no case liquid, depending on the model. The diaphragm seals are constructed from 316 stainless steel, suitable for corrosive or viscous media. The 103D and 104D series feature copper wetted parts, appropriate for non-corrosive fluids such as air, water, or oil. Connection types include 1/4 in NPT male center back for panel-mount models, and bottom or center back connections for the diaphragm seal models. The gauges are designed for industrial applications requiring reliable pressure indication in environments where vibration resistance is not specified. 3G Electric stocks these PIC GAUGES products for global shipment, supporting plant engineers and maintenance managers with a range of pressure measurement solutions for hydraulic systems, pneumatic lines, and process equipment. The brand's focus on standardized dial gauges with optional diaphragm seals allows for straightforward integration into existing piping and panel layouts.

Aplikasi Umum

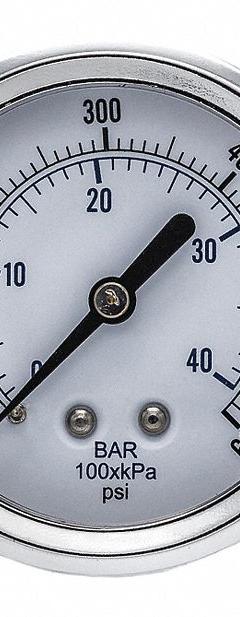

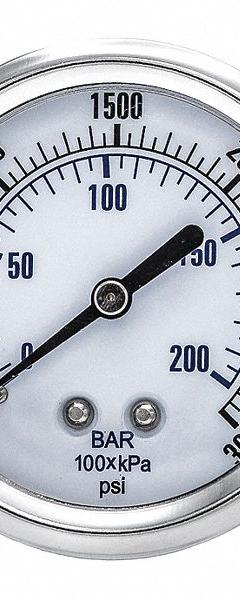

  • Hydraulic system monitoring — PIC GAUGES 103D series panel-mount gauges for 0–3,000 psi oil pressure indication

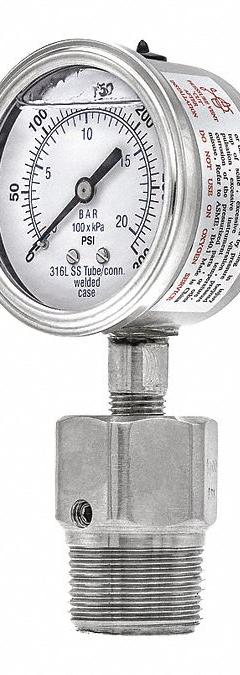

  • Corrosive chemical processing — PIC GAUGES 301L series with 316 SS diaphragm seal for 0–600 psi acid line measurement
  • Pneumatic control panels — PIC GAUGES 104D series front-flange gauges for 0–600 psi compressed air systems

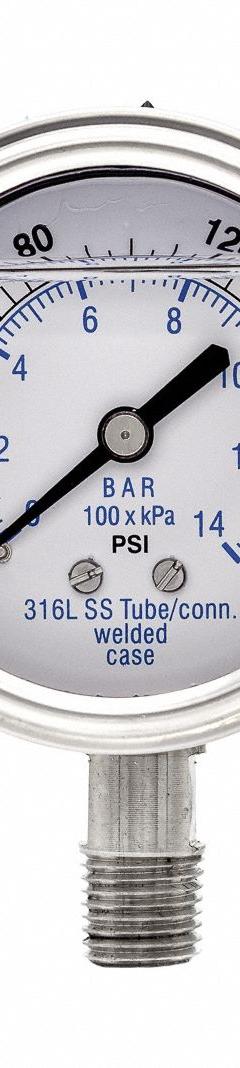

  • Viscous fluid transfer — PIC GAUGES 301L series with glycerin-filled seal for 0–200 psi slurry or polymer lines

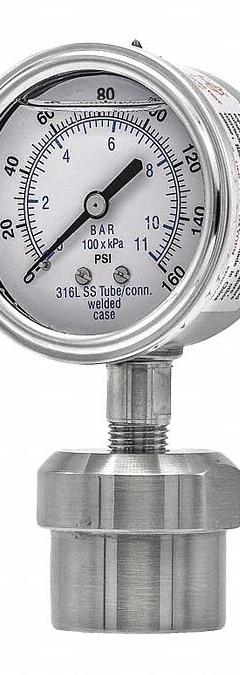

  • Steam or condensate lines — PIC GAUGES 301L series with 316 SS mini-seal for 0–160 psi steam pressure monitoring

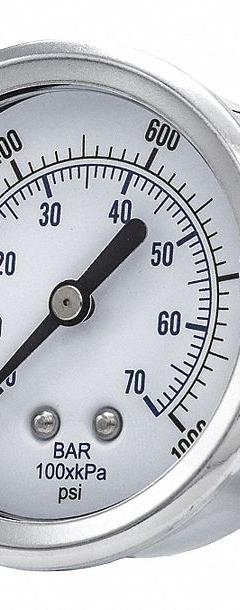

  • Water treatment plant — PIC GAUGES 103D series U-clamp gauges for 0–1,000 psi pump discharge pressure

Pertanyaan yang Sering Diajukan

Pertanyaan umum tentang PIC GAUGES dari 3G Electric.

What wetted materials are available in PIC GAUGES pressure gauges?

PIC GAUGES offers two primary wetted material options: brass/copper for the 103D and 104D series panel-mount gauges, and 316 stainless steel for the 301L series gauges with diaphragm seals. The brass/copper versions are suitable for non-corrosive fluids like air, water, and hydraulic oil. The 316 SS wetted parts in the 301L series are designed for corrosive or viscous media, with the diaphragm seal isolating the gauge from the process fluid.

What accuracy classes do PIC GAUGES dial gauges meet?

The 103D and 104D series panel-mount gauges have an accuracy of ±3-2-3% of span, which is typical for industrial-grade gauges. The 301L series gauges with diaphragm seals offer a higher accuracy of ±2-1-2% of span. These accuracy classes are defined per ASME B40.1 or equivalent standards, with the 301L series providing tighter tolerance for more precise readings in process applications.

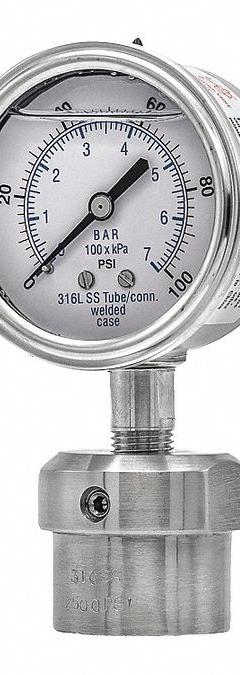

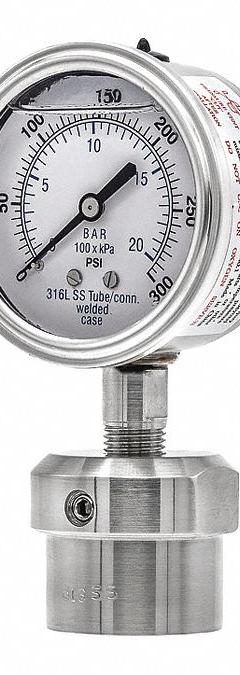

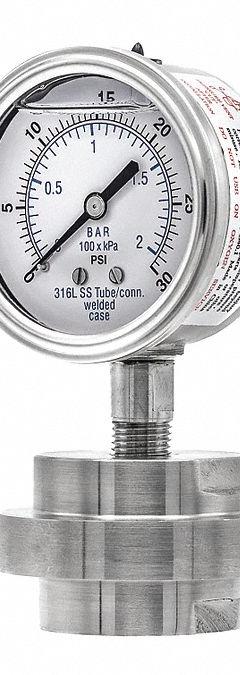

Can PIC GAUGES diaphragm seal gauges be used with glycerin fill?

Yes, many 301L series PIC GAUGES models come with glycerin fill in the gauge case, the seal, or both. For example, SKU 54XN81 has glycerin in both the gauge case and seal, while SKU 54XN60 has glycerin only in the seal with no case liquid. Glycerin fill dampens pointer flutter from vibration or pulsation and lubricates internal components. The seal fill liquid is separate from the gauge case fill, allowing customization based on application needs.

What mounting options are available for PIC GAUGES panel-mount gauges?

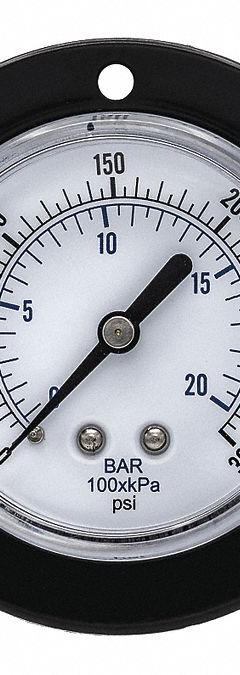

PIC GAUGES panel-mount gauges come in two configurations: U-clamp (103D series) and front-flange (104D series). Both use a 1/4 in NPT male center back connection for mounting through a panel. The U-clamp style secures the gauge with a clamp from the rear, while the front-flange style has a flange that mounts flush to the panel front. These options allow integration into control panels or instrument boards.

What pressure ranges are covered by PIC GAUGES products?

PIC GAUGES pressure gauges cover ranges from 0 psi to 3,000 psi. The 103D series includes models like 0–1,000 psi and 0–3,000 psi. The 301L series with diaphragm seals covers lower ranges such as 0–100 psi, 0–160 psi, 0–200 psi, 0–600 psi, and 0–1,000 psi. The diaphragm seal allows measurement of low pressures in corrosive or viscous media without direct contact with the gauge mechanism.

Does 3G Electric supply PIC GAUGES products?

Yes — 3G Electric (S) Pte. Ltd. supplies PIC GAUGES products. We stock the PIC GAUGES catalog and supply genuine factory-original products with full manufacturer warranty and technical support.
