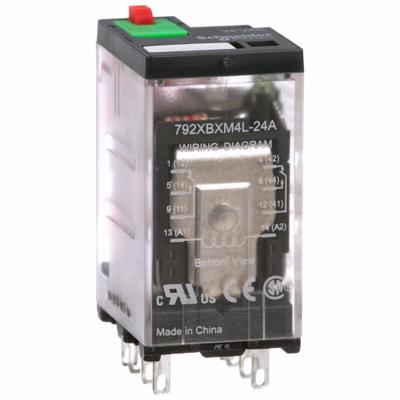

SCHNEIDER General Purpose Relay: Socket Mounted, 12 A Current Rating, 24V AC, DPDT - Socket-Mounted Relays
SCHNEIDERSocket-Mounted Relays

SCHNEIDER General Purpose Relay: Socket Mounted, 12 A Current Rating, 24V AC, DPDT

The SCHNEIDER 792 Series General Purpose Relay is a socket-mounted relay with a square base and plug-in mounting style. It features a DPDT contact configuration, an operating current of 12 A AC-1 (NO Conforming to…

SKU 3G-OTH-37694

Merek
SCHNEIDER
Item
General Purpose Relay: Socket Mounted, 12 A Current Rating, 24V AC, DPDT
Kategori
Socket-Mounted Relays
Tersedia untuk Dipesan
Stok tersedia & bea cukai ditangani
  • 6–10 business days door-to-door; Bea Cukai clearance typically 3–5 business days.
  • Invoicing in IDR or USD. Bank transfer and corporate PO accepted.
  • Dikirim ke: Jakarta, Surabaya, Bandung, Medan, Batam
Harga dagang sesuai penawaran — balasan dalam 24 jam
Jumlah
WhatsApp seorang insinyur
Tidak perlu akun — permintaan penawaran Anda langsung masuk ke tim insinyur kami. Akun gratis memungkinkan Anda melacak penawaran dan memesan ulang lebih cepat.
Pengiriman ke Seluruh Dunia
Pengiriman udara & laut
Lembar Data Atas Permintaan
Spesifikasi teknis
Penawaran 1 Hari
Balasan dalam 24 jam

Spesifikasi Teknis

SCHNEIDER
Manufacturer Part Number
792XBXM4L-24A
Series
792 Series
Type
DPDT
AC
24V
Base Type
Square
Current Rating
12 A
Mounting Style
Plug-In
Pins/Terminals
8
Operating Current
12 A AC-1 (NO Conforming to IEC)
Electrical Connection
Faston Connector
Lihat Lembar Spesifikasi Lengkap

Dokumen Teknis

Tidak ada dokumen teknis yang tersedia untuk produk ini.
Minta dokumentasi →
Tidak yakin ini adalah suku cadang yang tepat? Minta rekomendasi.

Butuh bantuan pemasangan atau rekayasa?

Instalasi, komisioning, rencana pemeliharaan, desain sistem, dan penawaran produk + layanan bundel — satu tim menangani cakupan penuh.
Bicaralah dengan seorang insinyur

Ajukan pertanyaan

SCHNEIDER Produk
3G Electric (S) Pte. Ltd. — Singapore

Deskripsi Produk

The SCHNEIDER 792 Series General Purpose Relay is a socket-mounted relay with a square base and plug-in mounting style. It features a DPDT contact configuration, an operating current of 12 A AC-1 (NO Conforming to IEC), and a 24V AC coil. Electrical connection is via Faston connectors, and the relay has 8 pins/terminals (MPN 792XBXM4L-24A).

Digunakan dalam

Aplikasi umum untuk SCHNEIDER
Motor starting in conveyor systems — Schneider Altistart ATS 22 soft starters (e.g., ATS22D17S6U) reduce inrush current.
Speed control for industrial pumps — Schneider Altivar ATV320 VFDs (e.g., ATV320U55N4W) provide variable flow regulation.
Machine safety interlocking — Schneider XPSUAF13AP safety relays monitor emergency stop circuits on assembly lines.
Panel-mounted control stations — Schneider XB5 flush push buttons (ZB5AA5) serve as start/stop operators in MCCs.
Heavy-duty motor switching — Schneider LC1G150LSEA contactors handle 150 A loads in compressor and crusher applications.
Emergency stop actuation — Schneider 9001K mushroom-head push buttons (9001KR25R) provide red, momentary stop functions.

SCHNEIDER Produk

3G Electric memasok SCHNEIDER socket-mounted relays. Kami menyediakan produk asli dengan ketersediaan tersedia di gudang untuk SKU umum, dokumentasi teknis, dukungan commissioning, dan layanan garansi — di seluruh dunia.
