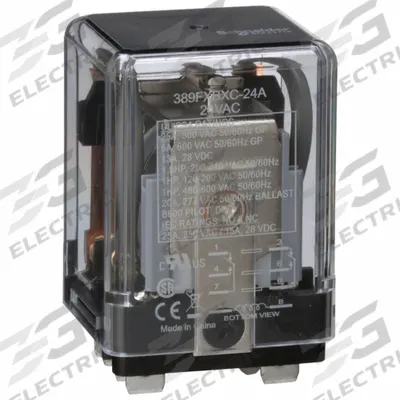

SCHNEIDER Enclosed Power Relay: Surface (Side Flange) Mounted, 25 A Current Rating
The SCHNEIDER 389F Power Series Enclosed Power Relay is a surface (side flange) mounted relay with an octal base and DPDT configuration. It features a 25 A current rating, operates on 24V AC, and provides an…
SKU 3G-OTH-36545
- 6–10 business days door-to-door; Bea Cukai clearance typically 3–5 business days.
- Invoicing in IDR or USD. Bank transfer and corporate PO accepted.
- Dikirim ke: Jakarta, Surabaya, Bandung, Medan, Batam
Butuh bantuan pemasangan atau rekayasa?
Ajukan pertanyaan
Deskripsi Produk
The SCHNEIDER 389F Power Series Enclosed Power Relay is a surface (side flange) mounted relay with an octal base and DPDT configuration. It features a 25 A current rating, operates on 24V AC, and provides an operating current of 22 A at 120V AC (Full Load) with quick-connect electrical connections.
Supplied to Indonesia — compatible with 50 Hz installations. DHL Express delivery to Jakarta, Surabaya, Bandung, customs and duties handled door-to-door.
Pertanyaan yang Sering Diajukan
What is the SCHNEIDER 389F Power Series enclosed power relay used for?
The SCHNEIDER 389F Power Series enclosed power relay is used for switching high-current industrial loads such as motors, heaters, and lighting systems. Its DPDT configuration and 25 A rating make it suitable for control panels, HVAC equipment, and automation systems requiring reliable power switching.
What are the specifications of the SCHNEIDER 389FXBXC1-24A relay?
The SCHNEIDER 389FXBXC1-24A is a DPDT enclosed power relay with a 25 A current rating, operating on 24V AC. It has an octal base, quick-connect electrical connections, and provides 22 A full-load current at 120V AC. It is part of the 389F Power Series and is surface (side flange) mounted.
Where to buy the SCHNEIDER 389FXBXC1-24A relay worldwide?
You can source the SCHNEIDER 389FXBXC1-24A relay through 3G Electric, a global industrial equipment distributor. We handle full logistics, customs clearance, and delivery to worldwide destinations. Contact us for availability and lead time; we supply genuine SCHNEIDER components for industrial applications.
How to install a SCHNEIDER 389F Power Series relay?
Mount the relay on a flat surface using the side flange holes, ensuring the octal base aligns with the socket. Connect wires to the quick-connect terminals per the DPDT wiring diagram. Verify the control voltage is 24V AC and the load does not exceed 25 A. Follow standard industrial safety practices for relay installation.
Digunakan dalam
Aplikasi umum untuk SCHNEIDERSCHNEIDER Produk
3G Electric memasok SCHNEIDER surface-mounted relays. Kami menyediakan produk asli dengan ketersediaan tersedia di gudang untuk SKU umum, dokumentasi teknis, dukungan commissioning, dan layanan garansi — di seluruh dunia.
