SCHNEIDER Enclosed Power Relay: Surface (Side Flange) Mounted, 20 A Current Rating - Surface-Mounted Relays
SCHNEIDERSurface-Mounted Relays

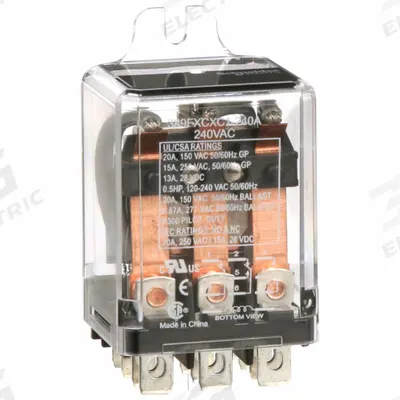

SCHNEIDER Enclosed Power Relay: Surface (Side Flange) Mounted, 20 A Current Rating

The SCHNEIDER Enclosed Power Relay is a surface (side flange) mounted relay from the 389F Power Series. It features an octal base type, quick-connect electrical connection, and a 3PDT contact configuration. The relay…

SKU 3G-OTH-37273

Merek
SCHNEIDER
Item
Enclosed Power Relay: Surface
Kategori
Surface-Mounted Relays
Tersedia untuk Dipesan
Stok tersedia & bea cukai ditangani
  • 6–10 business days door-to-door; Bea Cukai clearance typically 3–5 business days.
  • Invoicing in IDR or USD. Bank transfer and corporate PO accepted.
  • Dikirim ke: Jakarta, Surabaya, Bandung, Medan, Batam
Harga dagang sesuai penawaran — balasan dalam 24 jam
Jumlah
WhatsApp seorang insinyur
Tidak perlu akun — permintaan penawaran Anda langsung masuk ke tim insinyur kami. Akun gratis memungkinkan Anda melacak penawaran dan memesan ulang lebih cepat.
Pengiriman ke Seluruh Dunia
Pengiriman udara & laut
Lembar Data Atas Permintaan
Spesifikasi teknis
Penawaran 1 Hari
Balasan dalam 24 jam

Spesifikasi Teknis

SCHNEIDER
Manufacturer Part Number
389FXCXC1-240A
Series
389F Power Series
Type
3PDT
AC
240V
Base Type
Octal
Current Rating
20 A
Operating Current
15 A at 250V AC (Resistive Load)
Electrical Connection
Quick-Connect
Lihat Lembar Spesifikasi Lengkap

Dokumen Teknis

Tidak ada dokumen teknis yang tersedia untuk produk ini.
Minta dokumentasi →
Tidak yakin ini adalah suku cadang yang tepat? Minta rekomendasi.

Butuh bantuan pemasangan atau rekayasa?

Instalasi, komisioning, rencana pemeliharaan, desain sistem, dan penawaran produk + layanan bundel — satu tim menangani cakupan penuh.
Bicaralah dengan seorang insinyur

Ajukan pertanyaan

SCHNEIDER Produk
3G Electric (S) Pte. Ltd. — Singapore

Deskripsi Produk

The SCHNEIDER Enclosed Power Relay is a surface (side flange) mounted relay from the 389F Power Series. It features an octal base type, quick-connect electrical connection, and a 3PDT contact configuration. The relay has an operating current of 15 A at 250V AC (resistive load) and a current rating of 20 A at 240V AC.

Supplied to Indonesia — compatible with 50 Hz installations. DHL Express delivery to Jakarta, Surabaya, Bandung, customs and duties handled door-to-door.

Digunakan dalam

Aplikasi umum untuk SCHNEIDER
Motor starting in conveyor systems — Schneider Altistart ATS 22 soft starters (e.g., ATS22D17S6U) reduce inrush current.
Speed control for industrial pumps — Schneider Altivar ATV320 VFDs (e.g., ATV320U55N4W) provide variable flow regulation.
Machine safety interlocking — Schneider XPSUAF13AP safety relays monitor emergency stop circuits on assembly lines.
Panel-mounted control stations — Schneider XB5 flush push buttons (ZB5AA5) serve as start/stop operators in MCCs.
Heavy-duty motor switching — Schneider LC1G150LSEA contactors handle 150 A loads in compressor and crusher applications.
Emergency stop actuation — Schneider 9001K mushroom-head push buttons (9001KR25R) provide red, momentary stop functions.
