Ina 3G-OTH-117887 — Spesifikasi Teknis

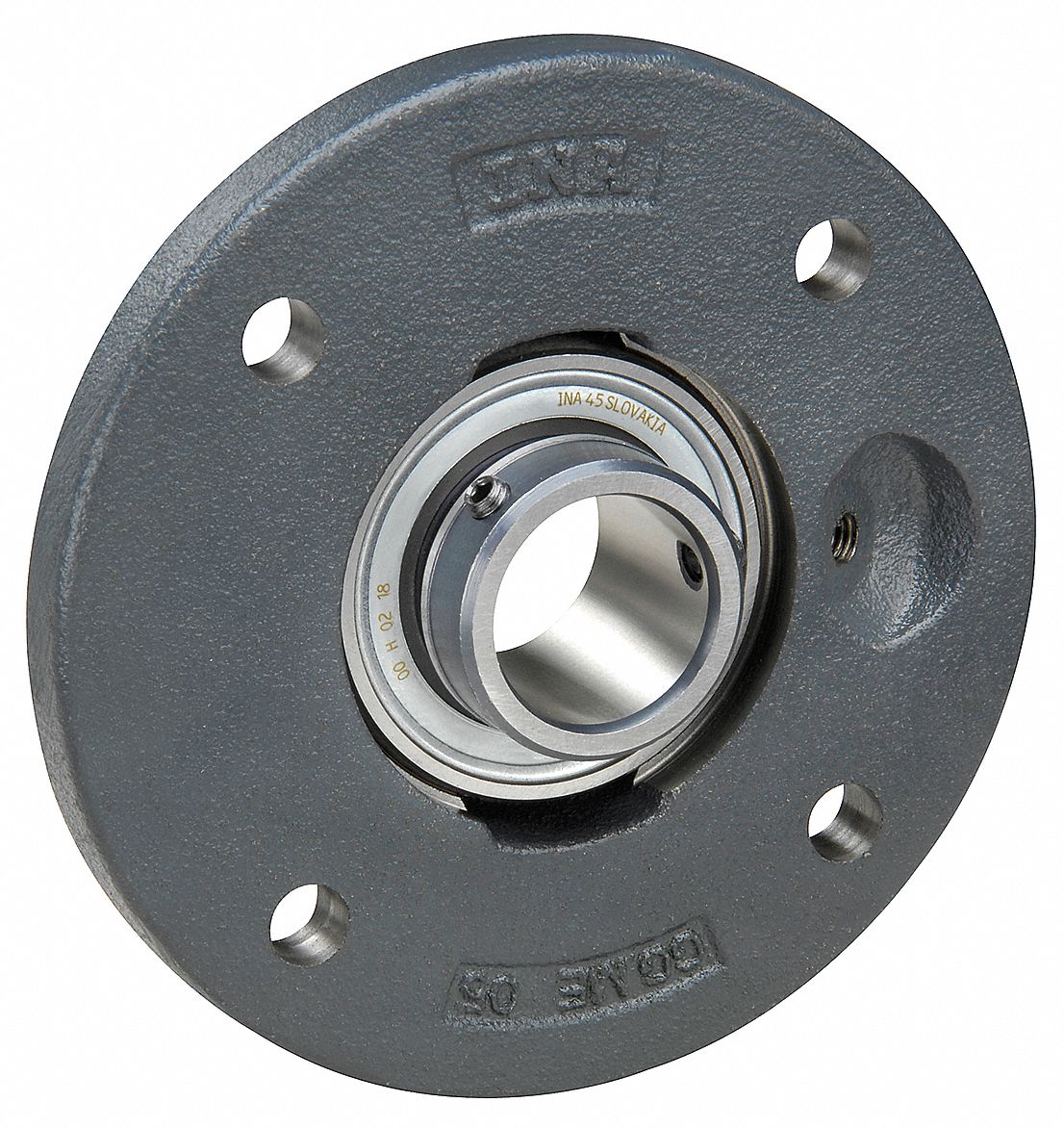

The INA 4 Bolt Flange Bearing is a general purpose flange-mount ball bearing with a 45 mm cylindrical bore, cast iron housing, and set screw locking. It is not split, uses lithium complex grease, and accepts M12 mounting bolts. This metric unit (MPN PMEY45-XL) measures 155 mm in length and 28.5 mm in width.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Lg | 155 mm |
| Wd | 28.5 mm |
| Bore | 45 mm |
| Type | Cast Iron, Set Screws |
| Brand | INA |
| Bore Type | Cylindrical |
| Split Housing | Not Split |
| Lubricant Material | Lithium Complex Grease |
| Mounting Bolt Size | M12 |
| System Of Measurement | Metric |
| Manufacturer Part Number | PMEY45-XL |
