Ntn 3G-OTH-120920 — Spesifikasi Teknis

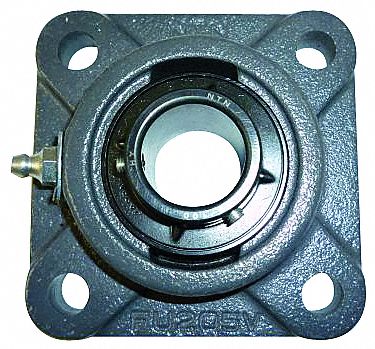

The NTN 4 Bolt Flange Bearing is a general purpose flange-mount ball bearing with a cylindrical bore and a 1 3/16 in bore size. It features a cast iron housing, set screw locking, and a square configuration with a 4 21/32 in length. The bearing is lubricated with NLGI #3 Equivalent grease and uses a 1/2 in mounting bolt size, measured in inches.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Lg | 4 21/32 in |
| Bore | 1 3/16 in |
| Type | Cast Iron, Set Screws, Square |
| Brand | NTN |
| Bore Type | Cylindrical |
| Lubricant Material | NLGI #3 Equivalent |
| Mounting Bolt Size | 1/2 in |
| System Of Measurement | Inch |
| Manufacturer Part Number | UCFUX-1.3/16M |
