Ashcroft 3G-OTH-175511 — Spesifikasi Teknis

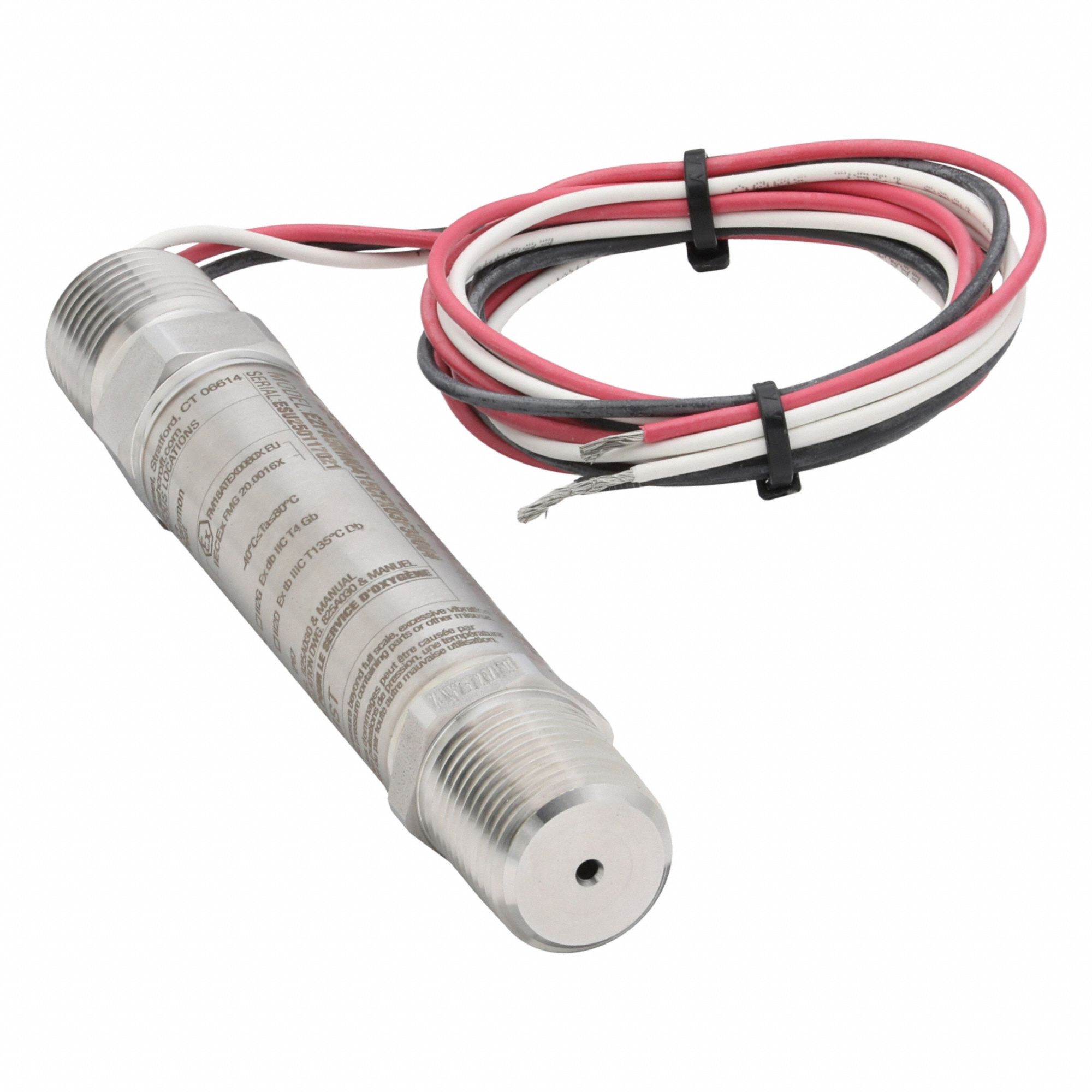

The ASHCROFT E2F Series Pressure Transmitter (MPN E2FA5NM0415CFX03F3000#) is an explosion-proof gauge pressure transmitter rated for 3,000 psi with a 1 to 5V DC output. It features a stainless steel housing, IP66 and NEMA 4X ratings, and a 1/2 in NPT conduit electrical connection with cable. The transmitter offers ±0.50% accuracy, 1.9x overpressure and 5x burst pressure protection, and is shock resistant with a Class II, Div 1, Group E, F, G safety rating.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Brand | ASHCROFT |
| Output | 1 to 5V DC |
| Series | E2F |
| Accuracy | ±0.50% |
| IP Rating | IP66 |
| NEMA Rating | 4X |
| Overpressure | 1.9x |
| Safety Rating | Class II, Div 1, Group E, F, G |
| Burst Pressure | 5x |
| Housing Material | Stainless Steel |
| Intrinsically Safe | Not Specified Intrinsically Safe |
| Electrical Connection | 1/2 in NPT Conduit with Cable |
| Pressure Type Measured | Gauge |
| Process Connection Type | NPT |
| Manufacturer Part Number | E2FA5NM0415CFX03F3000# |
| NIST Traceable Certificate | No NIST-Traceable Calibration Certificate Included |
| Resistance Properties - TS Only | Shock Resistant |
