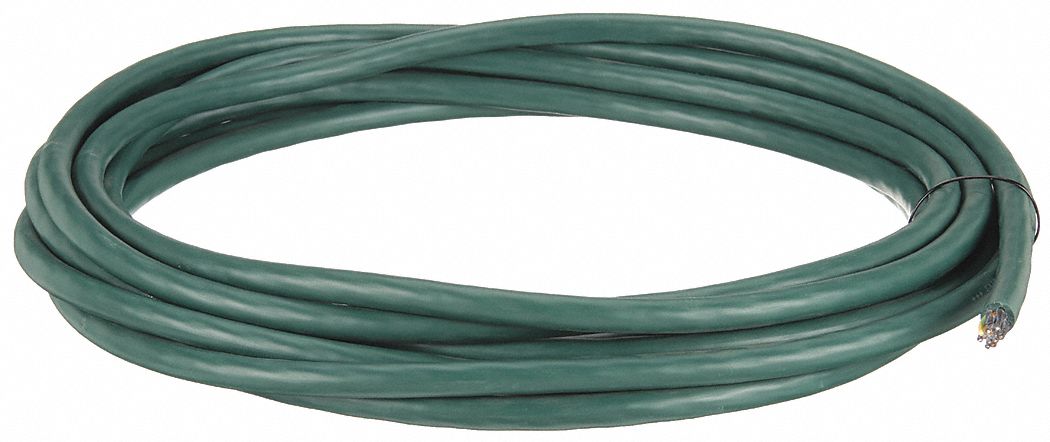

Chainflex 3G-OTH-47925 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-47925 CHAINFLEX Control Cable: 18 AWG, 12 Conductors, Order by the Foot, PVC Jacket, 600 V (MPN CF5-07-12). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: Oil and Grease Resistant; Standards: cRUus.
Brand: Chainflex

The CHAINFLEX Control Cable: 18 AWG is a continuous flexing control cable from the Chainflex CF5 series. This 12-conductor, 18 AWG cable features a copper conductor with black and white number coding, includes a ground, and is oil and grease resistant. It is cRUus listed, rated for 600 V, and has minimum bend radius factors of 4 x OD (fixed), 5 x OD (flexible), and 6.8 x OD (e-chain).

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Brand	CHAINFLEX
Series	Chainflex
Standards	cRUus
Cable Series	CF5
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Conductor Color Code	Black with White Numbers
Resistance Properties	Oil and Grease Resistant
Conductor Configuration	Single
Manufacturer Part Number	CF5-07-12
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
