Chainflex 3G-OTH-46649 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-46649 CHAINFLEX Control Cable: 16 AWG Conductor Size, 7 Conductors, PVC, Order by the Foot, Gray (MPN CF130US-15-07). Key specifications — Conductor Size: 16 AWG; Minimum Bend Radius Factor - Fixed: 5 x OD; Minimum Bend Radius Factor - Flexible: 7.5 x OD; Shielding: Unshielded; Brand: CHAINFLEX.
Brand: Chainflex

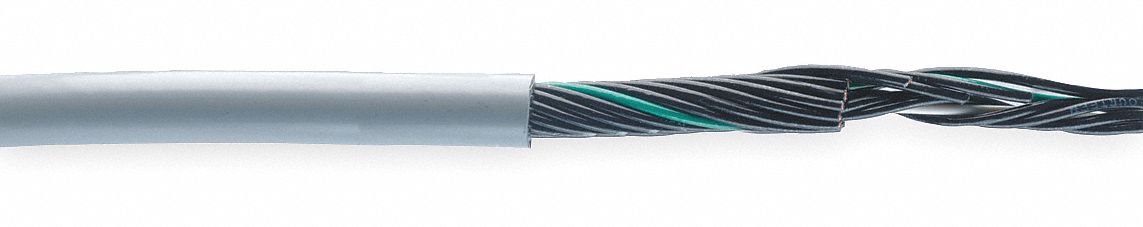

The CHAINFLEX Control Cable: 16 AWG Conductor Size is a continuous flexing exposed run tray cable, unshielded, with 7 conductors of 16 AWG and a PVC jacket in gray. It features a minimum bend radius factor of 5 x OD for fixed installations and 7.5 x OD for flexible applications, as specified by the manufacturer.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Brand	CHAINFLEX
Shielding	Unshielded
Conductor Size	16 AWG
Manufacturer Part Number	CF130US-15-07
Minimum Bend Radius Factor - Fixed	5 x OD
Minimum Bend Radius Factor - Flexible	7.5 x OD
