Chainflex 3G-OTH-54415 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-54415 CHAINFLEX Control Cable: 16 AWG, 36 Conductors, Order by the Foot, PVC Jacket, 300 V (MPN CF140-15-36). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 6 x OD; Includes Ground: Yes; Minimum Bend Radius Factor - E-Chain: 7.5 x OD; Resistance Properties: Flame Retardant; Standards: CF130.15.07.UL ISO Class 1 (Outer Jacket Material).
Brand: Chainflex

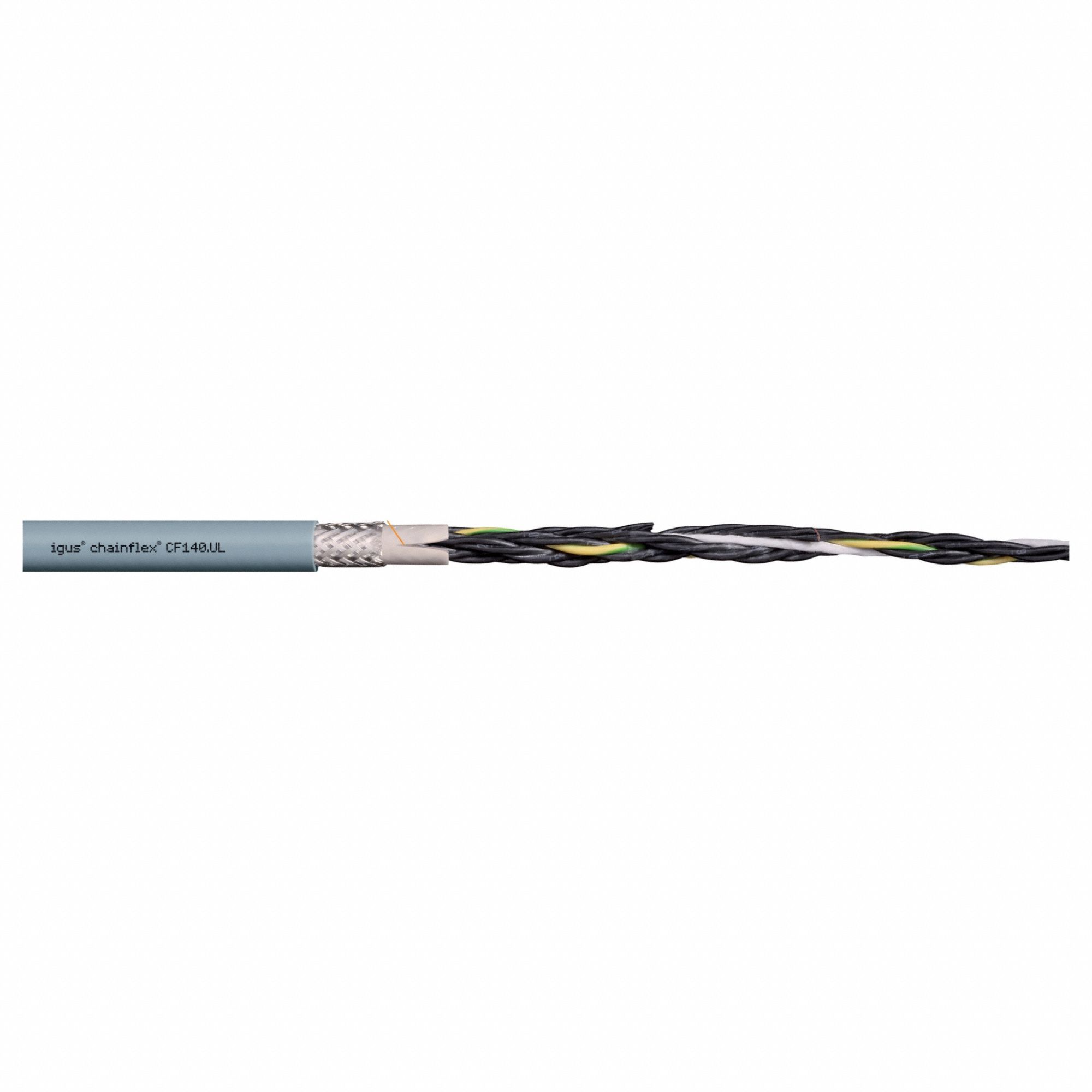

The CHAINFLEX Control Cable: 16 AWG (SKU 801JC2) is a continuous flexing control cable from the CF140-UL series, featuring 36 conductors of single copper wire with a PVC jacket rated at 300 V. It includes a ground conductor, is flame retardant, and meets CF130.15.07.UL ISO Class 1 outer jacket material standards. Minimum bend radius factors are 4 x OD for fixed installation, 6 x OD for flexible use, and 7.5 x OD for e-chain applications.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Brand	CHAINFLEX
Series	Chainflex
Standards	CF130.15.07.UL ISO Class 1 (Outer Jacket Material)
Cable Series	CF140-UL
Product Type	Control Cable
Includes Ground	Yes
Conductor Material	Copper
Resistance Properties	Flame Retardant
Conductor Configuration	Single
Manufacturer Part Number	CF140-15-36
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	7.5 x OD
Minimum Bend Radius Factor - Flexible	6 x OD
