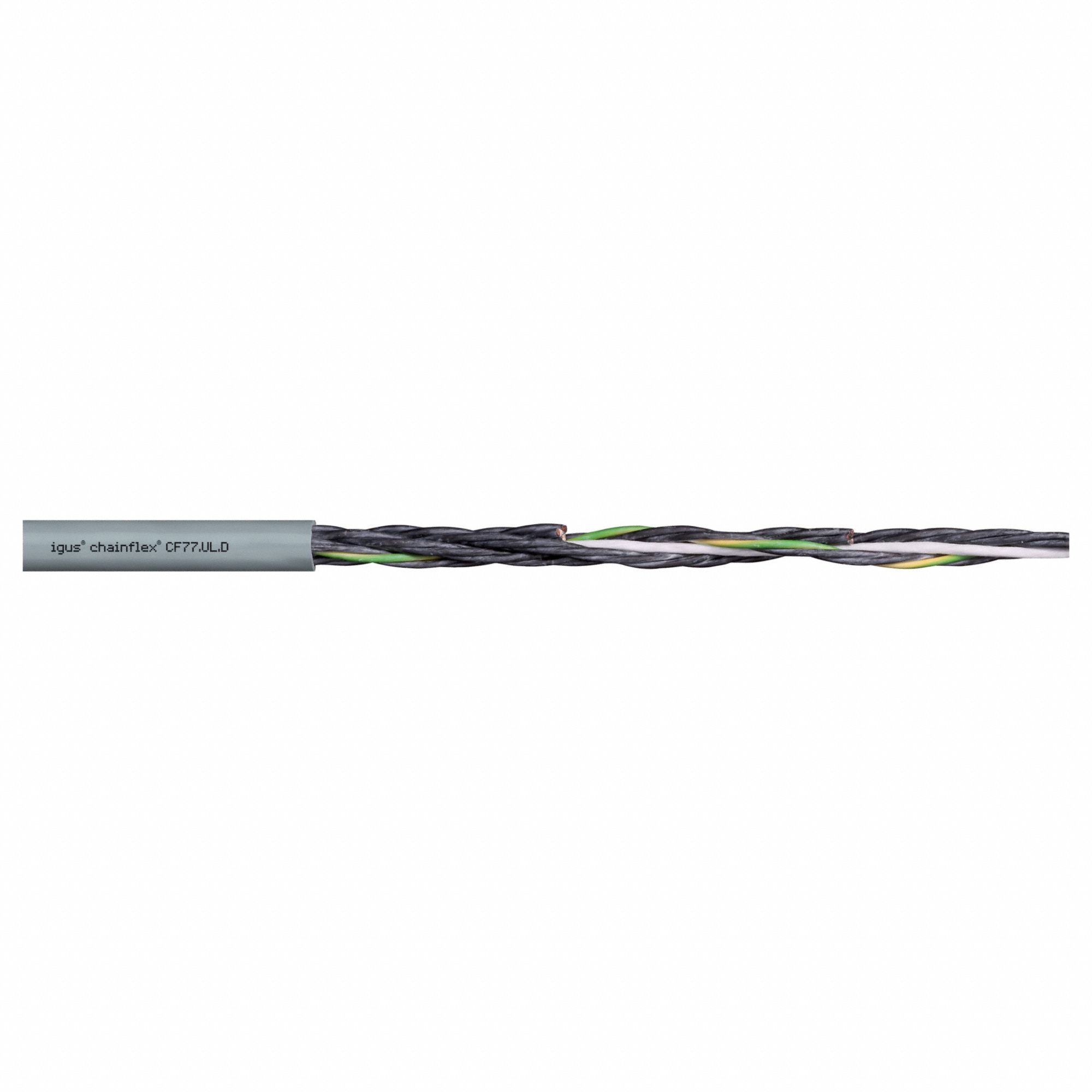

Chainflex 3G-OTH-45693 — Spesifikasi Teknis

Name: Chainflex 3G-OTH-45693 CHAINFLEX Control Cable: 24 AWG, 7 Conductors, Order by the Foot, PUR Jacket, 300 V (MPN CF77-UL-02-07). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: No; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: Antimicrobial; Standards: VDW DESINA.
Brand: Chainflex

CHAINFLEX Control Cable: 24 AWG, 7 Conductors, Order by the Foot, PUR Jacket, 300 V (MPN CF77-UL-02-07). Key specifications — Conductor Material: Copper; Conductor Configuration: Single; Minimum Bend Radius Factor - Fixed: 4 x OD; Minimum Bend Radius Factor - Flexible: 5 x OD; Includes Ground: No; Minimum Bend Radius Factor - E-Chain: 6.8 x OD; Resistance Properties: Antimicrobial; Standards: VDW DESINA.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Brand	CHAINFLEX
Series	Chainflex
Standards	VDW DESINA
Cable Series	CF77-UL
Product Type	Control Cable
Includes Ground	No
Conductor Material	Copper
Resistance Properties	Antimicrobial
Conductor Configuration	Single
Manufacturer Part Number	CF77-UL-02-07
Minimum Bend Radius Factor - Fixed	4 x OD
Minimum Bend Radius Factor - E-Chain	6.8 x OD
Minimum Bend Radius Factor - Flexible	5 x OD
